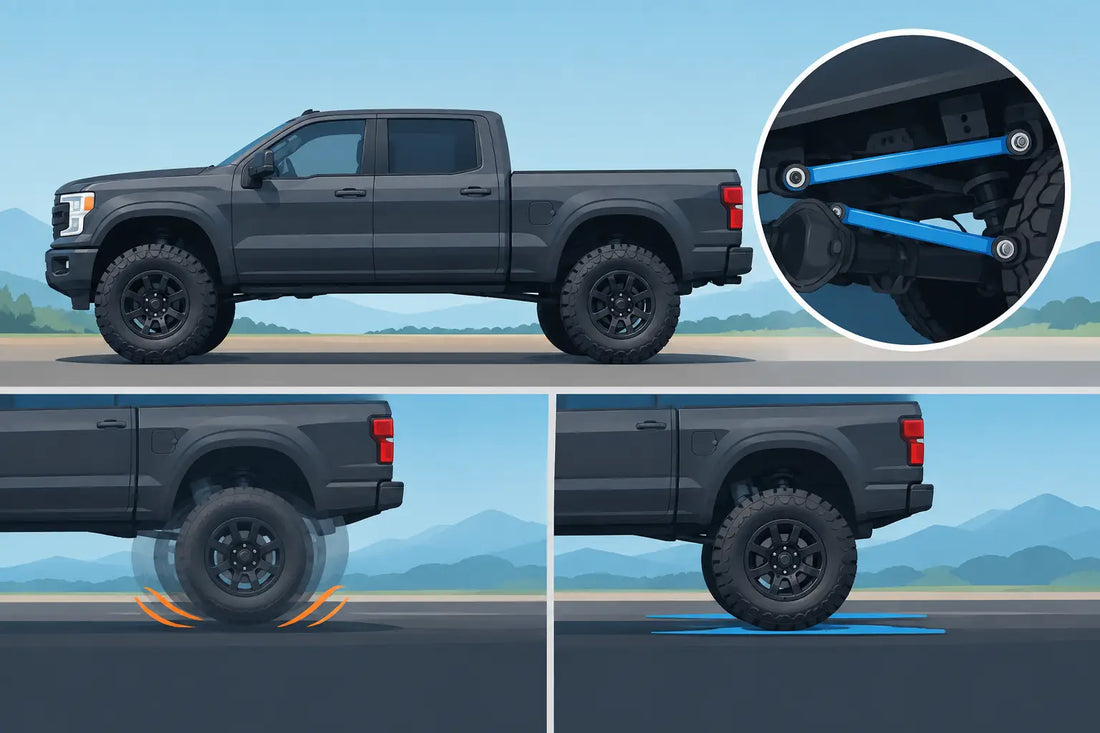

Can Traction Bars Reduce Wheelhop in Diesel Trucks?
Wheelhop is what happens when a hard-running diesel truck tries to put power down, but the rear suspension cannot keep the axle planted. The tires grab, break loose, grab again, and the truck bucks violently. So, can traction bars reduce wheelhop? On most leaf-spring diesel pickups, yes. A properly designed and correctly installed set can make a major difference by controlling axle wrap before it turns into repeated tire shake.
That does not mean traction bars are a cure for every vibration, shake, or traction issue. Wheelhop can also point to worn shocks, tired leaf springs, loose U-bolts, bad bushings, tire problems, or a driveline issue. The right bars help the suspension do its job. They do not replace diagnosing a truck that already has worn-out parts.
What Causes Wheelhop on a Diesel Truck?
Diesel pickups make a lot of low-rpm torque, and that torque hits the rear axle hard. Under throttle, the pinion tries to rotate upward. On a leaf-spring truck, the axle housing can twist the leaf pack into an S-shape. That movement is called axle wrap.
As the spring wraps, the pinion angle changes and the tire load changes. The tire may hook for a split second, then unload. When the spring snaps back, it hooks again. That cycle can happen fast enough to feel like the rear of the truck is hammering the pavement. It is rough on tires, springs, U-joints, driveshafts, differential components, and anything else caught in the shock load.
A mild truck may only show wheelhop when it is unloaded and hit hard from a stop. A tuned Cummins, Duramax, or Powerstroke with aggressive tires can do it much more easily, especially with a lift, taller blocks, softer springs, or a worn factory rear suspension. Towing can expose it too. A loaded trailer changes how the rear suspension reacts, and a heavy throttle pull can make axle wrap obvious.
How Traction Bars Reduce Wheelhop
Traction bars create a stronger path between the axle and the frame. Instead of allowing the axle housing to rotate freely against the leaf pack, the bars resist that rotation. Less axle rotation means less spring wrap, a more stable pinion angle, and more consistent tire contact.
That is the reason traction bars can reduce wheelhop so effectively. They do not create traction out of thin air. What they do is stop the suspension from wasting available traction through uncontrolled movement. When the tire is loaded more consistently, the truck can leave harder and feel more predictable under throttle.
For a street-driven diesel, the difference is usually noticeable right away. The truck may feel less loose when rolling into the throttle, less likely to chatter on a hard launch, and more controlled when pulling a load. On higher-horsepower builds, traction bars are often cheap insurance compared with the damage repeated axle wrap can cause.
Fixed Bars vs. Floating Traction Bars
Not every bar design works the same way. A basic fixed setup may control axle movement well, but it can bind suspension travel if the geometry is wrong. Binding makes a truck ride poorly and can put unwanted stress into brackets, bushings, and the frame.
A properly designed floating traction bar setup uses a shackle or pivot arrangement so the bar can control axle wrap while still allowing the leaf spring to move through its normal arc. That matters on a truck that sees potholes, job sites, rough roads, towing duty, or off-road use. The goal is not to lock the rear suspension solid. The goal is to control the rotation that causes wheelhop without fighting normal suspension travel.
Bar length, bracket location, shackle angle, joint quality, and frame mounting all matter. A traction bar that looks aggressive but has poor geometry can create new problems. Good fabrication is more than heavy wall tubing and a powder-coated finish. The mounting system has to work with the truck's suspension, not against it.
When Traction Bars Make the Biggest Difference
Traction bars are most valuable when your truck has enough torque to overpower the stock rear suspension. That includes tuned daily drivers, tow rigs that see heavy loads, street trucks on larger tires, and higher-horsepower builds that launch hard.
They are especially useful on trucks with lift blocks. Taller blocks add leverage between the axle and leaf spring, which gives axle wrap more room to happen. A truck may have driven fine at stock height, then develop noticeable hop after a lift and tune. In that case, traction bars address the root suspension movement instead of asking the tires to cover it up.
They also make sense if you have already seen the usual signs: a violent rear-end shake under throttle, changing pinion angle during acceleration, damaged spring packs, broken center pins, repeated U-joint wear, or a truck that spins and grabs instead of making a clean pull. If the rear suspension is visibly wrapping during a brake-torque test or hard launch, it is time to look at the setup.
Traction Bars Will Not Fix Every Problem
A truck with wheelhop should not get bars before it gets inspected. Start with the basics. Check leaf springs for cracks or sagging, inspect spring-eye and shackle bushings, and make sure U-bolts are properly torqued. Look at shocks, because weak shocks allow the suspension to oscillate after the tire loses control. Check wheel bearings, tire condition, tire pressure, and driveline joints as well.
If the truck shakes at a steady highway speed, that is not the classic traction-bar problem. It could be tire balance, a bent wheel, driveshaft balance, a failing U-joint, or another rotating assembly issue. Likewise, a vibration that appears only after a lift may be a pinion-angle or driveshaft-angle problem that needs to be corrected alongside the bar installation.
Traction bars also cannot make a bad tire work like a good one. An all-terrain tire on cold pavement will still have limits. The bars help the rear axle stay controlled so the tire has its best chance to hold the ground.
Choosing the Right Traction Bars for Your Build
Fitment comes first. Diesel trucks vary by platform, cab and bed configuration, lift height, axle arrangement, and existing aftermarket parts. A bar system built for one Ram, Duramax, or Powerstroke setup may not clear another truck the same way. Make sure the kit is intended for your platform and consider exhaust routing, spare tire clearance, hitch hardware, aftermarket differential covers, and any suspension changes already on the truck.
Ground clearance matters too. A low-hanging bar may survive a clean street truck, but it is a poor choice for a work truck that sees uneven ground. Frame brackets need to be strong, accurately placed, and attached to solid structure. Axle brackets should fit securely without creating a weak point on the housing or interfering with brake lines and other hardware.
Joint choice is a trade-off. Heims can provide precise movement and a performance look, but they may transmit more road noise and need regular inspection. Quality bushings can offer a quieter street ride while still controlling axle wrap. The right answer depends on how the truck is used, not just how it looks parked.
At Felder Kustom Fabrication, the point of a traction bar setup is to build something that belongs under a real diesel truck: strong material, clean fitment, and geometry that supports the way the truck gets driven.
Installation and Adjustment Matter
Do not treat traction bars like a bolt-on decoration. Install the truck at normal ride height, support it safely, and follow the hardware torque requirements. If the system is adjustable, set it according to the manufacturer's instructions. Too much preload can make the truck react harshly or introduce bind. Too little control may leave axle wrap on the table.
After installation, cycle the suspension if possible and inspect clearance through travel. Check that the bars do not contact the exhaust, driveshaft, brake lines, fuel tank, or bed structure. Recheck fasteners after the first few heat cycles and miles, then make bar inspection part of regular maintenance.
A diesel truck does not need to hop, buck, and beat on its own rear suspension every time the turbo lights. Get the rear suspension under control, keep the rest of the truck maintained, and let the power go where it belongs: into the ground.
