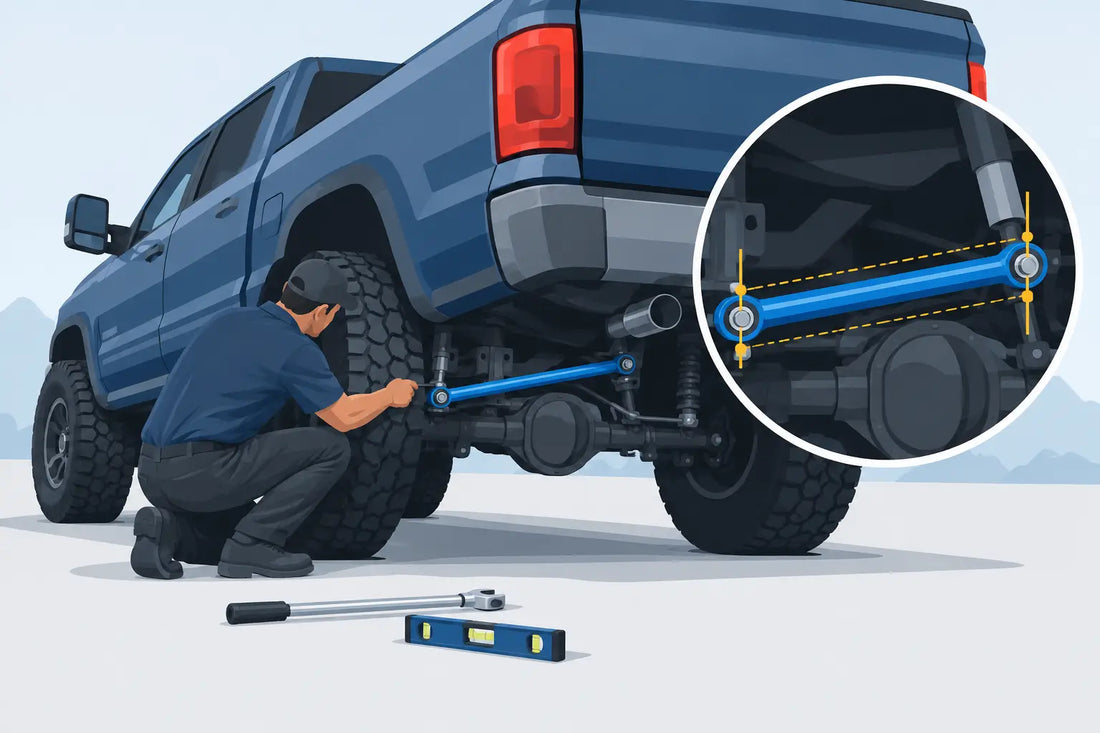

How to Align Traction Bars on Your Diesel Truck
A traction bar that is bolted on but not aligned is not doing your truck any favors. It can bind the rear suspension, load one side of the axle, wear bushings early, and create the exact kind of inconsistent launch or towing behavior you were trying to fix. Knowing how to align traction bars comes down to setting the truck at true ride height, centering the axle, and adjusting both bars so they work together without fighting suspension travel.
This job is not about cranking the adjusters until everything looks tight. The goal is controlled axle wrap without creating preload or bind where it does not belong.
What Proper Traction Bar Alignment Does
On a diesel truck, rear axle wrap shows up when torque tries to rotate the axle housing under acceleration. That rotation can cause wheel hop, inconsistent traction, driveshaft angle changes, and added stress on leaf springs and U-joints. A properly installed traction bar controls that rotation while still allowing the rear suspension to cycle.
Alignment matters because the bars become part of the suspension’s movement path. If one bar is longer than the other, the axle can be pushed forward or backward on one side. If the bars are forced into place under load, they can preload the axle and make the truck pull, sit unevenly, or bind through travel.
The correct setup depends on the bar design. A rigid-style bar, a shackle-style setup, and a kit with adjustable heims do not all get adjusted the same way. Always follow the hardware orientation and mounting instructions for your specific kit, especially on Duramax, Cummins, and Powerstroke applications where frame brackets, axle tubes, and suspension layouts vary.
Start With the Truck at Ride Height
The biggest mistake when aligning traction bars is making final adjustments with the rear axle hanging in the air. When the suspension droops, the axle rotates and shifts compared with its position on the ground. A bar length that seems right on jack stands may be preloaded once the truck is lowered.
Park on level ground with the truck sitting under its own weight. Fuel level, bed load, hitch weight, and suspension setup all affect ride height. For a street truck, align the bars with the truck in its normal driving condition. For a tow rig that regularly carries a heavy trailer or bed load, it makes sense to verify the setup at loaded ride height as well.
You can still use jack stands for safety while installing brackets and hardware, but support the truck by the axle if you need the suspension held at ride height. Never rely on a hydraulic jack alone.
Before adjusting, confirm that the leaf springs, U-bolts, shackles, shocks, and rear axle centering are in good shape. Traction bars cannot correct worn spring bushings, loose U-bolts, or an axle that has already shifted on the spring pack.
Tools You Need Before You Adjust
Most installs do not require a full fabrication shop, but a few basics make the work cleaner and safer:
- Floor jack and properly rated jack stands
- Tape measure and straightedge
- Wrenches or sockets sized for your bar hardware
- Torque wrench
- Paint marker or scribe
- Anti-seize for adjustable threaded joints, if recommended by the manufacturer
How to Align Traction Bars Step by Step
1. Install the brackets without final-tightening everything
Mount the axle brackets and frame-side brackets according to the kit instructions. Leave the pivot hardware and adjustable ends loose enough to move during setup, unless the manufacturer specifies otherwise.
Make sure left and right brackets sit in matching locations on the axle tubes. Measure from a consistent reference point, such as the brake backing plate, spring perch, or axle flange. Eyeballing bracket placement can leave you with bars that look close but sit at different angles under the truck.
If the kit uses clamp-on axle brackets, verify they are square to the axle tube before torqueing. A bracket that rotates under load changes the geometry and can damage the axle tube finish or loosen over time.
2. Center the rear axle before setting bar length
Check that the axle is square under the truck. Measure from a fixed frame point to the axle on both sides, or compare wheelbase measurements from the same front suspension reference to each rear axle centerline. The measurements should match within a small, practical tolerance.
If the truck has lift blocks, aftermarket leaf springs, or adjustable spring perches, pay close attention here. An axle that is not centered can make one traction bar appear too short and the other too long. Adjusting the bars to compensate only locks that problem into the suspension.
Also inspect pinion angle before you move on. Traction bars should control axle wrap, not be used as a shortcut for correcting a bad driveline angle caused by a lift or incorrect blocks.
3. Set both bars to the same effective length
With the truck at ride height and the axle centered, adjust each bar so its mounting bolts slide through the brackets freely. The bolts should install by hand or with only light movement of the bar. If you have to pull a bar into place, you are adding preload.
For a parallel-bar setup, both bars should be the same effective center-to-center length. Measure from the center of the front mounting bolt to the center of the rear mounting bolt on each side. Matching the exposed thread count on heims is a helpful visual check, but it is not as accurate as measuring center to center.
Keep enough thread engagement in every adjustable end. Do not run a heim or threaded joint out to the last few threads just to make the length work. If adjustment range is not sufficient, stop and check bracket location, axle position, and whether the kit matches the truck’s lift height.
4. Eliminate unwanted preload
For most street, towing, and daily-driven diesel builds, neutral adjustment is the right starting point. Neutral means both bars install at ride height with no force required and no intentional twist applied to the axle.
Some race-focused setups use deliberate preload to influence launch behavior, but that is a tuning decision, not a standard installation step. Preloading one side without understanding how the truck reacts can create uneven tire loading, steering correction under power, or a truck that feels strange on rough roads. Start neutral, drive it, and only make small changes if you are solving a specific, repeatable issue.
If your system uses a shackle at one end, the shackle needs room to rotate through suspension travel. Do not set it against its stop at ride height. The exact shackle angle depends on the kit design, but it should not be near a position where compression or droop immediately forces it into bind.
5. Check clearance through suspension movement
Before final torque, inspect clearance around the driveshaft, exhaust, shock bodies, brake lines, parking brake cables, differential cover, and spare tire area. Turn the driveshaft by hand if the truck is safely supported and verify that nothing contacts under normal movement.
A lowered truck, lifted truck, oversized exhaust, long-travel shocks, or aftermarket differential cover can all change available room. Look for at least enough clearance that normal axle articulation will not let the bars or hardware touch another component.
Check the bars from the side and rear of the truck. They should sit evenly side to side and follow the intended path of the kit. One bar noticeably higher, lower, or angled differently usually points to a bracket placement or adjustment problem.
6. Torque hardware and recheck after driving
Once the bars are aligned, torque every mounting fastener to the traction bar manufacturer’s specifications. Use the supplied locking hardware exactly as intended. If the kit calls for jam nuts on adjustable ends, tighten them after final length is set.
Mark the hardware with a paint pen. It gives you a fast visual check later and makes it easy to spot a bolt or jam nut that has moved. After the first 50 to 100 miles, recheck torque, bracket position, and adjuster tightness. Check again after a hard towing trip, a sled pull, or repeated high-torque launches.
Common Alignment Problems to Avoid
Do not adjust traction bars with the rear axle hanging unless you are only getting close before the final ride-height adjustment. Do not use the bars to pull a shifted axle back into place. Do not force bolts through misaligned brackets, and do not assume equal exposed threads mean the bars are correctly matched.
Another common issue is overtightening pivot points that need to articulate. Follow the hardware instructions for your setup. Heims, bushings, and shackle pivots all have different requirements, and the wrong torque or spacer stack can limit movement.
If the truck clunks after installation, inspect hardware torque, jam nuts, axle bracket position, and clearance first. If it wheel hops worse than before, look for binding, incorrect bar length, loose U-bolts, worn leaf spring components, or a shackle that cannot move through its range.
A quality traction bar setup should feel controlled, not harsh or locked up. Whether your diesel is built for heavy towing, weekend pulls, or putting power down on the street, take the extra time to align the bars at ride height. That is what lets the suspension move like it should while the axle stays where the power wants to send it.
