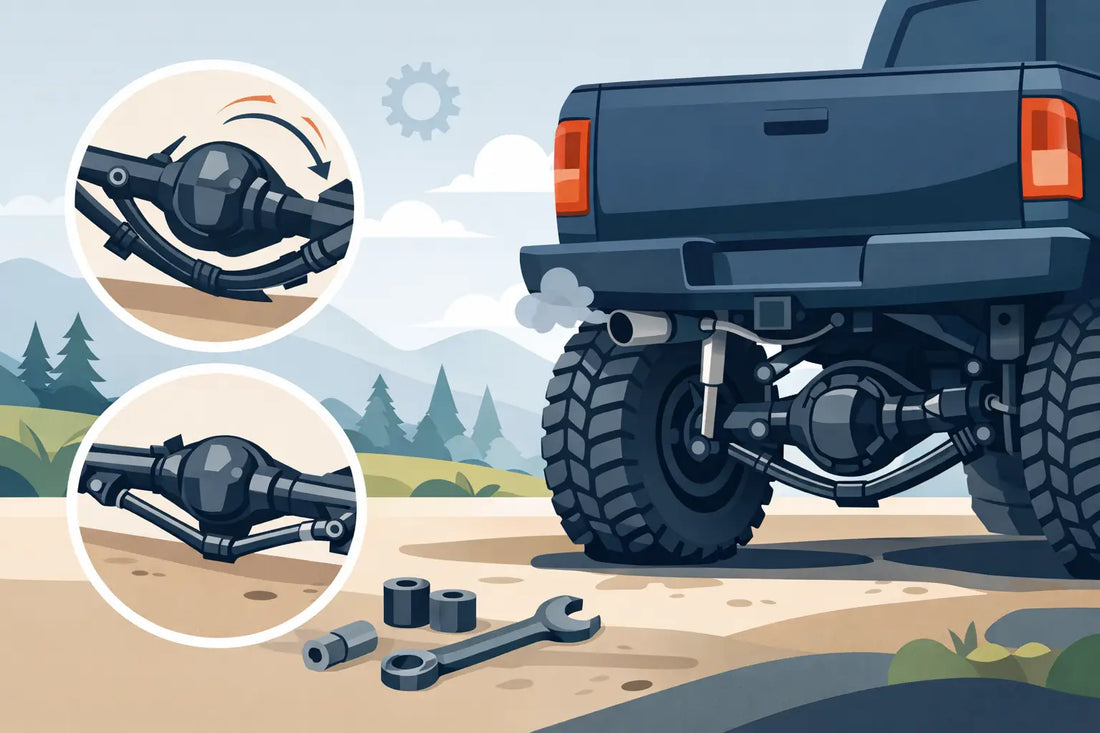

How to Prevent Axle Wrap on Diesel Trucks
A hard launch that turns into wheel hop is not just rough on your truck. If the rear axle is repeatedly rotating against the leaf springs, it can beat up U-joints, driveshafts, spring packs, shocks, and tire tread in a hurry. Knowing how to prevent axle wrap means controlling that axle housing before torque turns a clean diesel build into a broken-parts problem.
Axle wrap shows up most often on leaf-sprung rear suspensions with added power, larger tires, worn springs, lift blocks, or a heavy right foot. That covers plenty of Duramax, Cummins, and Powerstroke trucks. The fix is not simply making the suspension stiff. It is building a rear suspension that can put power down while still doing its job on the street, under a trailer, and on rough ground.
What Axle Wrap Actually Does
Under throttle, the ring gear applies torque to the axle housing. On a leaf-spring truck, that housing tries to rotate upward. The leaf pack resists the rotation, bends into an S-shape, then rebounds. If the tire loses and regains traction during that cycle, you get wheel hop.
The driver may feel it as a violent shudder during a launch, a chatter when rolling into the throttle, or a bounce while pulling a grade with a loaded trailer. Sometimes it is most obvious in four-wheel drive, where traction is high enough to expose the problem. A truck does not need huge horsepower to wrap an axle. Torque, traction, suspension condition, and geometry all matter.
Repeated wrap also changes pinion angle as the axle moves. That can put the driveline through angles it was never meant to see under load. A little vibration today can become a worn U-joint, damaged yoke, or failed driveshaft later.
How to Prevent Axle Wrap With Traction Bars
For most diesel pickups, a properly designed set of traction bars is the most direct answer. Their job is to resist axle housing rotation while allowing the suspension to cycle. Instead of letting the front half of the leaf spring absorb every hit of torque, the bars transfer that load into a controlled pivot point at the frame.
A good traction-bar setup needs the right length, mounting position, joint style, and frame brackets for the truck. It should be built around the actual suspension configuration, whether the truck is stock height, leveled, lifted, or running custom leaf packs. Universal hardware may fit physically while still putting the bar at a poor operating angle.
Longer bars generally provide smoother control and less abrupt bind through suspension travel than short, steep bars. The front pivot should be solidly mounted to a properly reinforced section of frame, not attached to thin material that flexes every time the truck hooks. The axle mounts must also be located and welded so they control rotation without interfering with brake lines, shocks, exhaust, or tire clearance.
Joint choice matters too. Heims offer precise movement and an aggressive fabricated look, but they can transmit more road noise and need periodic inspection. Rebuildable bushings tend to be quieter and better suited to a truck that sees a lot of street and towing miles. Neither is automatically better. Match the setup to how the truck is actually used.
Felder Kustom Fabrication traction bars are built for diesel owners who need that control without giving up the clean, purpose-built look of a real truck build.
Do not preload bars blindly
Preload is often misunderstood. On level ground, with the truck at normal ride height, traction bars are usually adjusted neutral or with only the amount of preload needed to correct a known launch issue. Cranking heavy preload into both bars can make the truck sit unevenly, reduce suspension compliance, or create bind.
A race-focused truck may benefit from a more aggressive adjustment strategy. A daily-driven tow rig usually needs predictable behavior, quiet operation, and full suspension travel first. Set the bars at ride height, make small changes, and test the truck under the conditions that caused the hop in the first place.
Start With the Leaf Springs and Hardware
Traction bars can control axle rotation, but they cannot make worn-out suspension parts new again. Before adding parts, inspect the rear leaf packs closely. Look for flattened or cracked leaves, shifted center pins, rust between leaves, broken clips, damaged spring perches, and weak or collapsed bushings.
The front spring eye bushings deserve special attention. If they are torn or loose, the axle can move around under load even with a quality bar setup. Worn shackle bushings and loose U-bolts create similar problems. Re-torque U-bolts to the manufacturer specification after installation and after the initial break-in period. A loose axle-to-spring connection lets the housing move, which works against every other improvement you make.
Lift blocks can make axle wrap worse because they increase the leverage between the axle tube and leaf spring. That does not mean every blocked truck will hop, but tall blocks combined with soft springs and added diesel torque are a proven recipe for trouble. If you are rebuilding the suspension, a properly matched lift spring or a lower block height often gives the traction bars less work to do.
Set Pinion Angle for Real Suspension Travel
Pinion angle is where a lot of otherwise solid builds go sideways. The goal is not simply pointing the pinion directly at the transfer case or transmission. The correct relationship depends on the driveshaft type and U-joint arrangement.
On a conventional two-joint driveshaft, the operating angles at each U-joint should generally be close to each other so their speed fluctuations cancel out. On a double-cardan shaft, the pinion is commonly aimed much closer to the shaft, with the exact target determined by the shaft manufacturer and joint style. The wrong setup can cause vibration, joint wear, and seal issues even if the truck feels fine during a quick parking-lot test.
Measure at normal ride height, then consider what happens when the suspension squats under throttle or trailer tongue weight. Axle wrap changes pinion angle dynamically, which is another reason traction bars help. If you use angled shims, they must be correctly sized, securely installed, and compatible with the spring pack and center pin. Do not stack random shims or use them to cover up bent components.
Shocks, Tires, and Power Delivery Still Matter
Weak rear shocks do not cause axle wrap by themselves, but they make wheel hop harder to control once it starts. A quality shock with the right valving helps settle the rear of the truck after a hit and keeps the tire planted more consistently. If your shocks are leaking, underdamped, or too short for the lift height, replace them before expecting traction bars to solve everything.
Tire choice changes the situation as well. A sticky tire on dry pavement can expose axle wrap that an all-terrain tire used to spin through. Oversized tires add leverage and rotational mass. Tire pressure also affects how the truck loads the contact patch, especially when towing or drag racing. There is no one pressure that fits every truck, but a truck that hops should be tested with sensible adjustments rather than treated with more throttle.
Power delivery matters most with high-torque diesel tuning. A tune that brings in torque hard at low rpm can hit the suspension harder than a smoother calibration with similar peak numbers. If the truck hops only in a certain tune, gear, or drive mode, that is useful information. The suspension needs attention, but the calibration may need to be better matched to the truck's intended use.
Avoid These Common Axle-Wrap Fixes
Do not try to cure wheel hop by over-tightening every suspension component or welding the suspension into a rigid setup. A pickup needs articulation and controlled movement. Binding the rear suspension can create poor ride quality, stress the frame, and make the truck less predictable on uneven roads.
Overload springs, add-a-leafs, and heavier spring packs can help support payload and reduce some spring deflection, but they are not always a substitute for traction bars. They can also make an empty truck ride harsher. Likewise, simply adding more lift can hide nothing and worsen geometry.
If wheel hop is severe, stop making hard pulls until the cause is addressed. One violent event can damage more than a set of springs. Inspect the rear suspension, confirm the driveline is healthy, then build the setup around the way you use the truck. A dialed-in traction-bar system lets a diesel truck leave clean, tow with confidence, and keep putting down power without beating itself apart.
