How to Install Cummins Turbo Inlet Horn Right
A turbo inlet horn sits in one of the most visible spots under the hood, so a rushed install shows fast. When you install Cummins turbo inlet horn components correctly, the result is a cleaner intake path, secure connections, and an engine bay that looks like the rest of the truck was built with purpose.
This is not a hard job for someone comfortable working around a diesel engine, but fitment matters. Cummins generations, turbo configurations, intake kits, and aftermarket piping can all change the process. Take your time, keep the parts clean, and do not force a coupler or clamp into place just to make it work.
Confirm Fitment Before You Start
The first rule is simple: make sure the inlet horn matches your exact turbo and truck setup. A part designed for one Cummins platform may not fit another without different boots, reducers, clamps, or an adapter. Stock turbo locations, upgraded drop-in chargers, compound setups, and aftermarket intake systems all affect the connection points.
Before taking anything apart, compare the new horn to what is on the truck. Check the turbo inlet diameter, the intake tube diameter, the angle of the inlet, and the location of any sensor provisions or mounting tabs. If the new horn is larger than the factory piece, make sure your existing intake tube and silicone coupler are sized to match it.
A clean installation starts with the right parts on the bench. Have basic hand tools ready, along with a nut driver or socket for worm-gear clamps, a clean rag, and the supplied couplers and clamps. If your truck has an aftermarket intake, keep the manufacturer-specific hardware nearby. Mixing random clamps and worn-out boots into a new setup is where many installs go sideways.
Prep the Engine Bay and Remove the Factory Inlet
Let the truck cool completely before working around the turbo. The compressor housing and surrounding hardware can stay hot long after shutdown, especially on a truck that has been towing, making repeated pulls, or sitting through a regen cycle.
Start by disconnecting the intake tube from the factory inlet or compressor housing. Loosen the clamp at the turbo side first, then work the tube and boot loose without yanking on it. If the coupler has been heat-cycled for years, carefully break the seal by twisting it. A small amount of movement is better than prying hard against a turbo housing or cracking an aging plastic intake tube.
Remove any factory resonator, inlet elbow, or related bracket that will not be reused. Keep track of hardware if the new inlet horn uses a factory mounting point. Look closely at the compressor inlet once the old part is off. It needs to be clean, smooth, and free of damaged O-rings, old silicone residue, shop towels, or loose debris.
Do not leave the turbo inlet exposed while you walk away from the truck. A dropped bolt, dirt, or even a small piece of packaging can become an expensive problem once the engine is started. Cover the opening with a clean lint-free rag while you stage the new parts, then remove it immediately before installation.
Inspect the Couplers Before Reusing Them
Silicone boots can look fine from the outside while hiding issues near the clamp area. Check for splitting, soft spots, oil saturation, and distortion from overtightened clamps. Light oil film from crankcase ventilation is common on diesel intake plumbing, but a boot that is swollen or slipping should be replaced.
Also inspect every clamp. A clamp with stripped threads, a bent band, or a sharp edge can fail to hold the intake connection under load. A quality inlet horn deserves hardware that can keep up when boost and airflow increase.

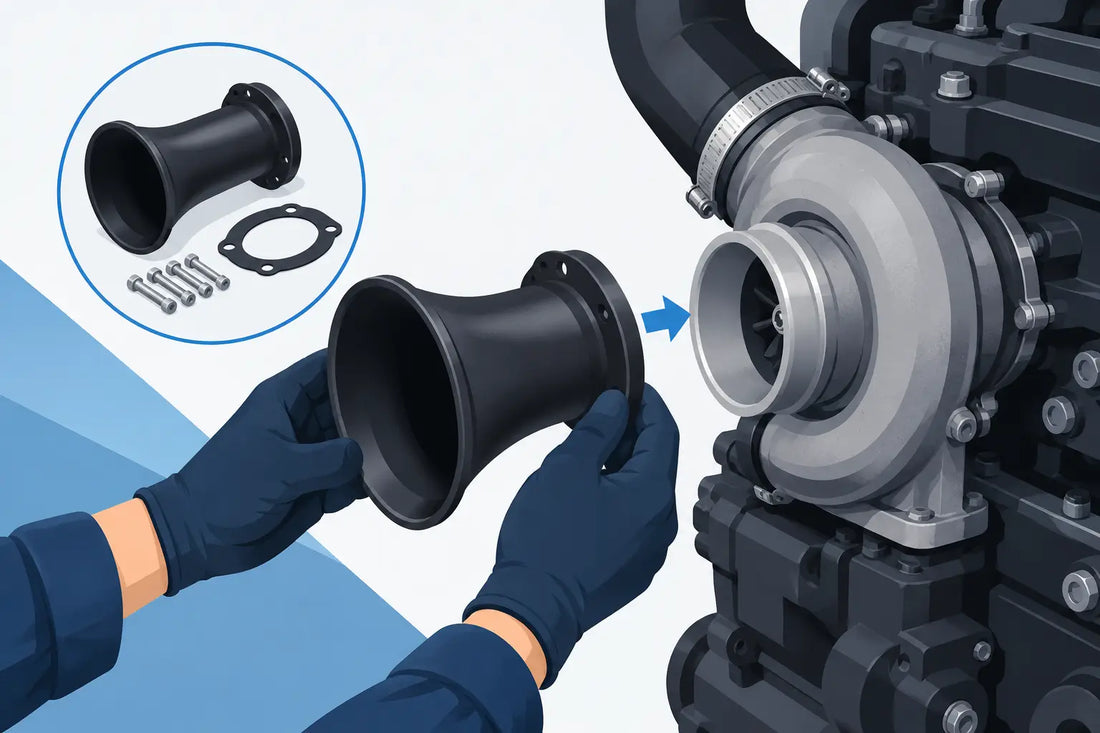

Install Cummins Turbo Inlet Horn Components Without Forcing Them
Set the new inlet horn into position first without tightening anything. This dry fit tells you whether the angle, depth, and clearance are correct. Check the space around the intake tube, battery area, coolant hoses, wiring looms, and hood insulation. On a clean custom build, this is the point where alignment matters as much as function.
If the horn uses a silicone coupler at the turbo, slide the coupler onto the turbo inlet far enough that the clamp will sit fully over the sealing surface. Place the clamp over the boot, but leave it loose enough to rotate the assembly. Then install the inlet horn into the coupler and connect the intake tube on the opposite end.
With both sides loosely assembled, rotate the horn until it has even clearance and a natural path from the air filter to the turbo. The intake tube should not be under tension, pulled sideways, or pressed against a sharp edge. If it only fits when everything is forced, stop and recheck your coupler size, horn orientation, and truck-specific configuration.
Once the alignment is right, tighten the clamps evenly. Do not crank them down until the band cuts into the silicone. A properly sized clamp seals by applying consistent pressure around the boot, not by crushing it. Position worm-gear screw housings where they are accessible for future service but not rubbing a hose, wiring, or painted component.
If your inlet horn includes a support bracket, install it after the intake path is aligned. The bracket should support the assembly, not pull it into a different angle. Tighten its fasteners only after the horn, couplers, and intake tube sit naturally in place.
Check Clearance Where It Counts
A truck can look perfect with the hood open and still have an issue once the engine moves under throttle. Before calling the job finished, inspect the horn and intake tube from several angles. Look for contact with the hood, fan shroud, battery tray, coolant lines, AC lines, or harnesses.
Pay close attention to the compressor-side clamp and any nearby wiring. The engine moves in its mounts, and a clamp screw that barely clears at idle can rub through a wire loom over time. A small adjustment now is easier than diagnosing a boost leak or electrical issue later.
If your build has a larger battery, aftermarket intercooler piping, custom powder-coated parts, or a non-stock turbo arrangement, clearance becomes even more application-specific. This is where fabricated parts earn their place. A properly fitted inlet horn should add visual impact without turning routine maintenance into a fight.
Start, Inspect, and Recheck After a Drive
Start the truck and let it idle while you inspect the intake connection points. Listen for an obvious air leak, whistle, or rubbing noise. A minor change in intake sound can be normal, especially if the new horn has a larger, smoother inlet path. A sharp hissing sound, however, can point to a coupler that is not seated or a clamp that needs repositioning.
With the engine off again, give the intake tube and horn a firm hand check. Nothing should rotate freely or shift out of alignment. Verify that all tools, rags, old hardware, and packaging are out of the engine bay before closing the hood.
After the first drive, recheck the clamps once the engine has warmed up and cooled back down. Silicone can settle after a heat cycle, especially on a new installation. This does not mean overtightening everything. It means confirming the couplers remain fully seated and the clamps are still snug and properly positioned.
Performance and Appearance Both Matter
A turbo inlet horn is not a magic horsepower part by itself. Its value depends on the rest of the setup: turbo choice, intake system, tuning, exhaust, and how the truck is actually used. On a stock daily driver, the biggest change may be cleaner under-hood presentation and a less restrictive-looking connection. On a truck with supporting airflow upgrades, the inlet path becomes a more meaningful part of the whole combination.
That is the right way to approach any Cummins upgrade. Build the truck around your goals, whether that means towing reliability, a clean show-ready engine bay, or a harder-running street setup. Felder Kustom Fabrication parts are built for owners who want those details to look intentional, not like an afterthought.
Take one last look before you shut the hood. A straight inlet horn, clean couplers, and properly routed intake tube do more than finish the install - they set the standard for the rest of the build.
