How to Install a Diesel Core Support Cover
A clean engine bay does not happen by accident. When you install a diesel core support cover, you are covering one of the first areas people see when the hood comes up: the factory upper radiator support, hardware, wiring, and plastic that can make an otherwise dialed truck look unfinished.
A core support cover is a straightforward appearance upgrade, but the install still deserves attention. Rushing the fit, forcing a fastener, or trapping a wire under the panel can turn a clean detail into a headache. Take a few minutes to prep the area, verify your platform, and mount the cover correctly. The result is an engine bay that looks more intentional whether the truck is a tow rig, street build, show truck, or daily-driven diesel.
Confirm Your Truck and Cover Fitment First
Diesel engine bays are not interchangeable just because the trucks share a badge or engine family. Duramax, Cummins, and Powerstroke platforms all have different core-support shapes, hood-latch locations, factory clips, reservoirs, and underhood components. Even within one platform, model years and trim packages can change the layout enough to matter.
Before opening a package or removing factory hardware, compare the cover to the truck. Check the hood-latch opening, bolt holes, notch locations, and clearance around the intake, radiator hose routing, fuse box, and coolant reservoir. If your truck has aftermarket intake tubing, hood stacks, auxiliary lighting wiring, dual-battery equipment, or custom plumbing, give those parts extra attention. A fabricated cover may fit the factory layout perfectly while a modified engine bay needs a small adjustment in wire routing or a different mounting approach.
Do not assume that a panel can be bent into place if an opening is off. Powder-coated or finished metal parts can be damaged by forcing them, and an incorrect fit may point to the wrong application, an obstructed harness, or a missed factory clip. Start by identifying the issue rather than putting pressure on the panel.
What to Do Before You Install a Diesel Core Support Cover
Start with a cool engine bay. You will be working near the radiator area, upper hoses, fan shroud, and latch assembly, so there is no reason to work around hot components. Park on level ground, set the parking brake, and raise the hood fully. If the hood struts are weak, support the hood before leaning into the engine bay.
Clean the top of the core support before the cover goes on. Blow away loose dust and leaves, then wipe down the support and surrounding trim with a clean microfiber towel. This matters more than most people think. Dirt trapped under a cover can hold moisture, rub through painted surfaces over time, and leave the engine bay looking rough every time the panel comes off for service.
Have basic hand tools ready. Depending on the truck and cover design, you may need a socket and ratchet, a nut driver, trim-clip tool, Torx bit, Phillips screwdriver, and a small flashlight. Keep the factory fasteners organized as they come out. A magnetic tray or small parts container saves you from searching the radiator support for a dropped bolt.
If the installation requires moving a battery cable, fuse-box lid, intake tube, or latch trim, take a quick photo before disassembly. That reference is useful when it is time to route everything back into its original position.

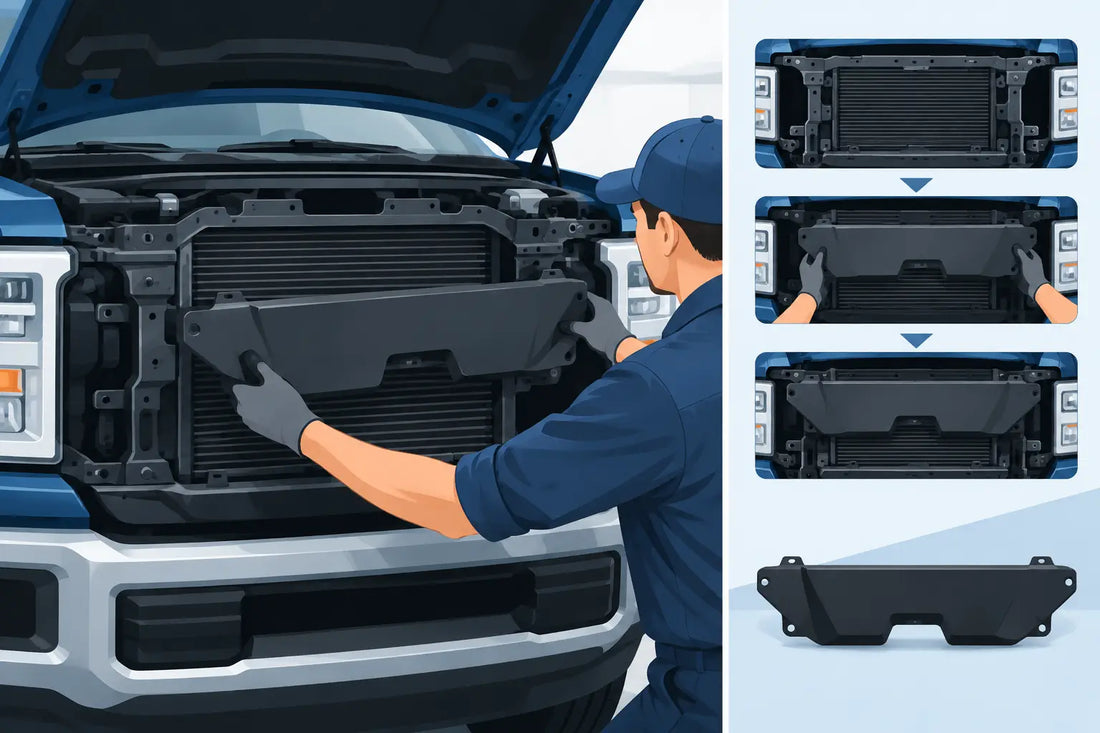

Installing the Diesel Core Support Cover Cleanly
Test-fit before removing more parts
Set the cover in position without hardware first. Do not tighten anything yet. Confirm that it sits flat across the support, the hood latch has full access, and no wires or hoses are pinched underneath. Pay close attention to the rear edge of the panel near the grille and the areas around any factory plastic trim.
A good cover should look centered before the first fastener goes in. If one side sits high, remove the panel and look for a harness clip, accumulated debris, an incorrectly seated trim piece, or an accessory bracket making contact. Most fitment problems are simple obstructions, not bad parts.
Remove only the hardware you need
Many core support covers use existing factory bolt locations or factory-style push clips. Remove the needed fasteners carefully, keeping track of where each one came from. Some OEM bolts may be different lengths, especially near latch brackets or plastic shrouds. Reinstalling a long bolt in the wrong location can damage a component below the support.
Avoid removing the hood-latch hardware unless the specific cover instructions call for it. The latch is a safety component, and unnecessary adjustment can affect hood alignment or closing action. If the cover uses an opening around the latch, it should install around that area without changing latch position.
Route wiring and hoses with clearance
Before the panel is secured, inspect every harness and hose that passes near its edges. Factory wiring often runs along the top of the radiator support in plastic retainers. Make sure those retainers are fully seated and that the cover is not pressing on a wire, especially near sharp edges or mounting holes.
This is also the time to account for aftermarket additions. Light-bar wiring, train-horn wiring, auxiliary switches, boost-reference lines, and battery cables should be secured away from heat and moving parts before the cover goes on. Do not use the cover to hide loose wiring. A clean engine bay is built on proper routing first, then clean panels over the top.
Start every fastener by hand
Place the cover back into position and start each bolt, screw, or clip loosely. Hand-starting the hardware keeps threads straight and lets you make small alignment adjustments before tightening. Once all mounting points are engaged, center the panel by eye and tighten the fasteners evenly.
Do not over-tighten. Most core support cover hardware threads into sheet metal, plastic retainers, or factory brackets that do not need excessive torque. Snug is the goal. If a bolt suddenly gets hard to turn before it seats, stop and check alignment rather than powering through it.
With push clips, press the panel down evenly and make sure the clip is fully seated. A clip that looks installed but is only partially engaged can let the cover rattle or lift at speed.
Check Hood, Latch, and Service Access
Before closing the hood, look across the entire panel one more time. The cover should sit flat with even gaps around the latch, grille-side trim, and nearby components. Make sure you can still access anything you need for regular service, including the hood-release latch, coolant reservoir cap, battery connections, and fuse box if those sit in the same area.
Lower the hood slowly the first time. Do not slam it. Watch for interference at the front corners and center latch area. If the hood will not close with normal effort, reopen it immediately and inspect the cover position. A cover that contacts the underside of the hood can scratch the finish, bend the panel, or create a rattle.
After the hood closes normally, pull the interior hood release and verify the hood pops as it should. Then drive the truck, preferably over a few normal road surfaces, and listen for vibration or rattling from the front of the engine bay. If you hear movement, recheck fasteners and confirm that all clips are seated.
Common Problems That Make the Install Look Wrong
The most common issue is installing over a dirty support. The panel may look good on day one, but trapped grime shows up later when it works out around the edges. Clean first.
The next issue is using hardware to force alignment. If the panel has to be pulled hard to reach a bolt hole, something is likely underneath it. Remove it, locate the interference, and correct the problem. Forcing a fabricated panel can distort the mounting points and leave uneven gaps.
Finally, do not ignore small clearance issues because the truck is parked. Engine movement, road vibration, heat cycles, and hood flex can turn a barely touching wire or hose into a worn-through problem. A little clearance is always better than a tight fit around a harness.
Make the Engine Bay Look Finished
A core support cover works best as part of a complete engine-bay setup. It ties together the area at the front of the truck, especially when paired with matching fuse-box covers, brake reservoir covers, intake components, and clean wiring management. The goal is not to cover everything up. The goal is to make the truck look built with purpose.
Felder Kustom Fabrication parts are made for diesel owners who want that finished look without losing the functional, hard-working character of the truck. Choose platform-specific pieces, install them with the same care you put into the rest of the build, and check them after the first few heat cycles and miles. The details under the hood are what separate a pile of aftermarket parts from a truck that looks properly put together.
