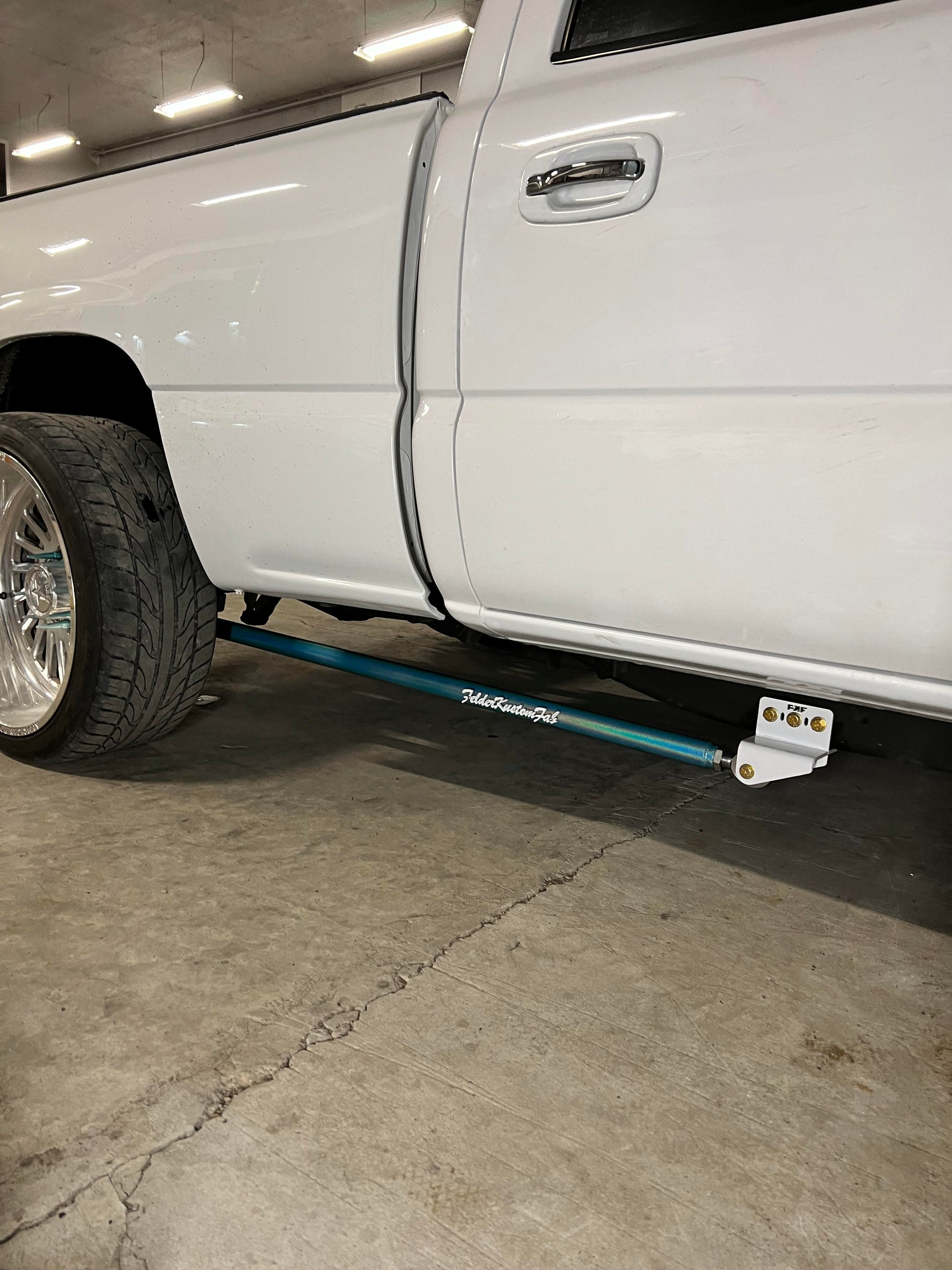

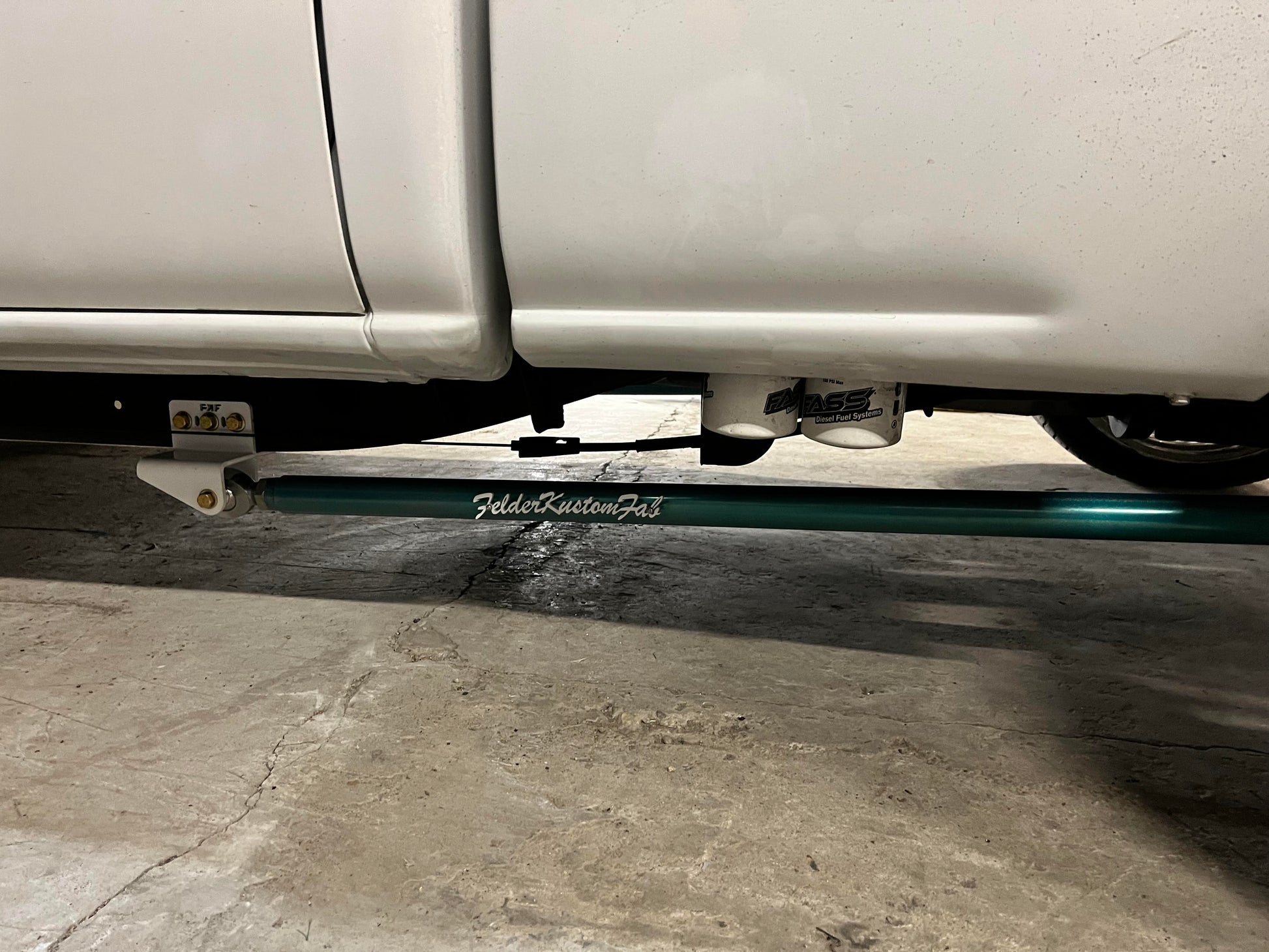

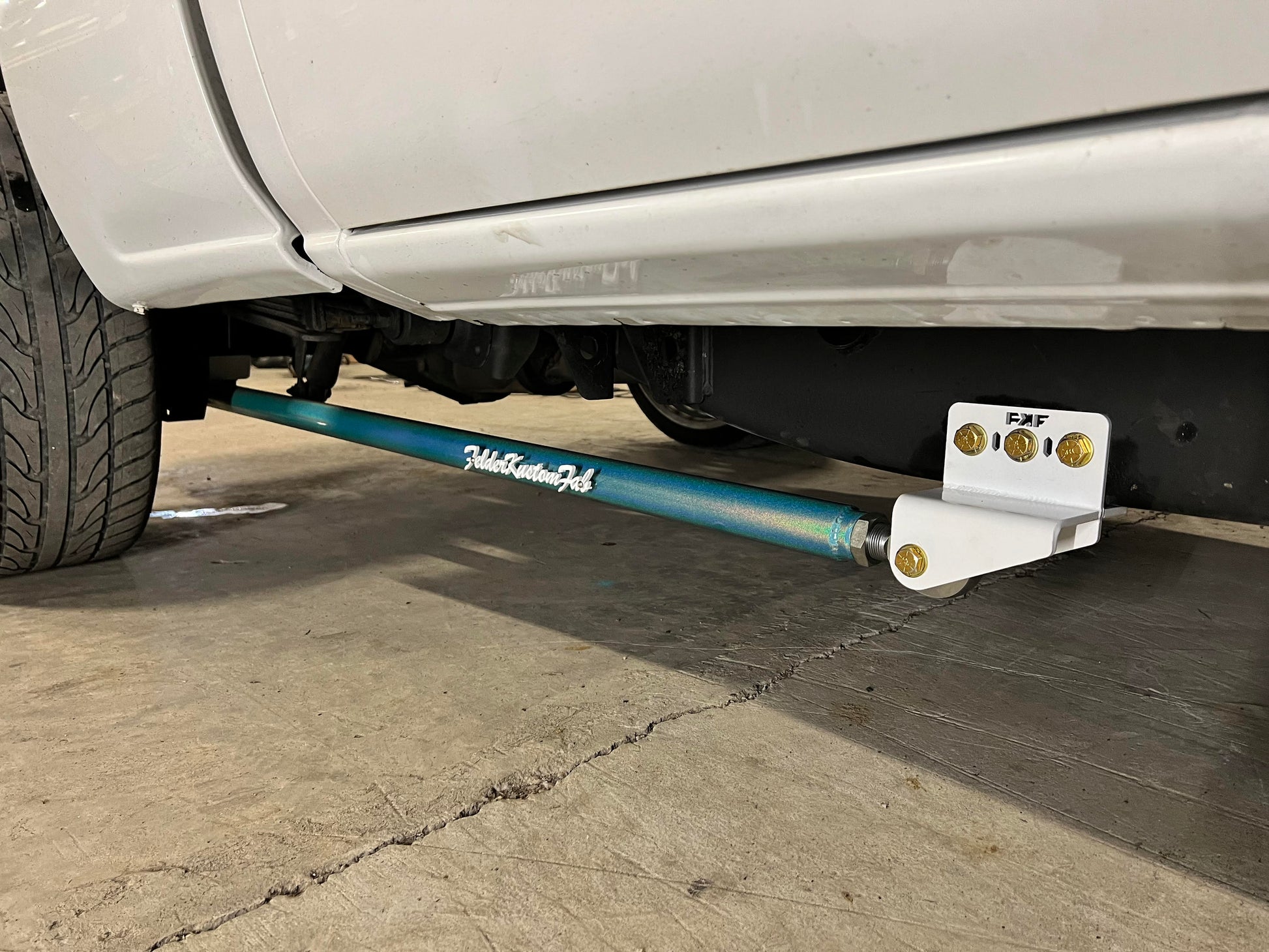

2001-2010 Duramax Bolt on Tube Style Traction Bars

FKF 60"-75" traction bars for 3.5" Axle Diameter Chevrolet/GMC trucks

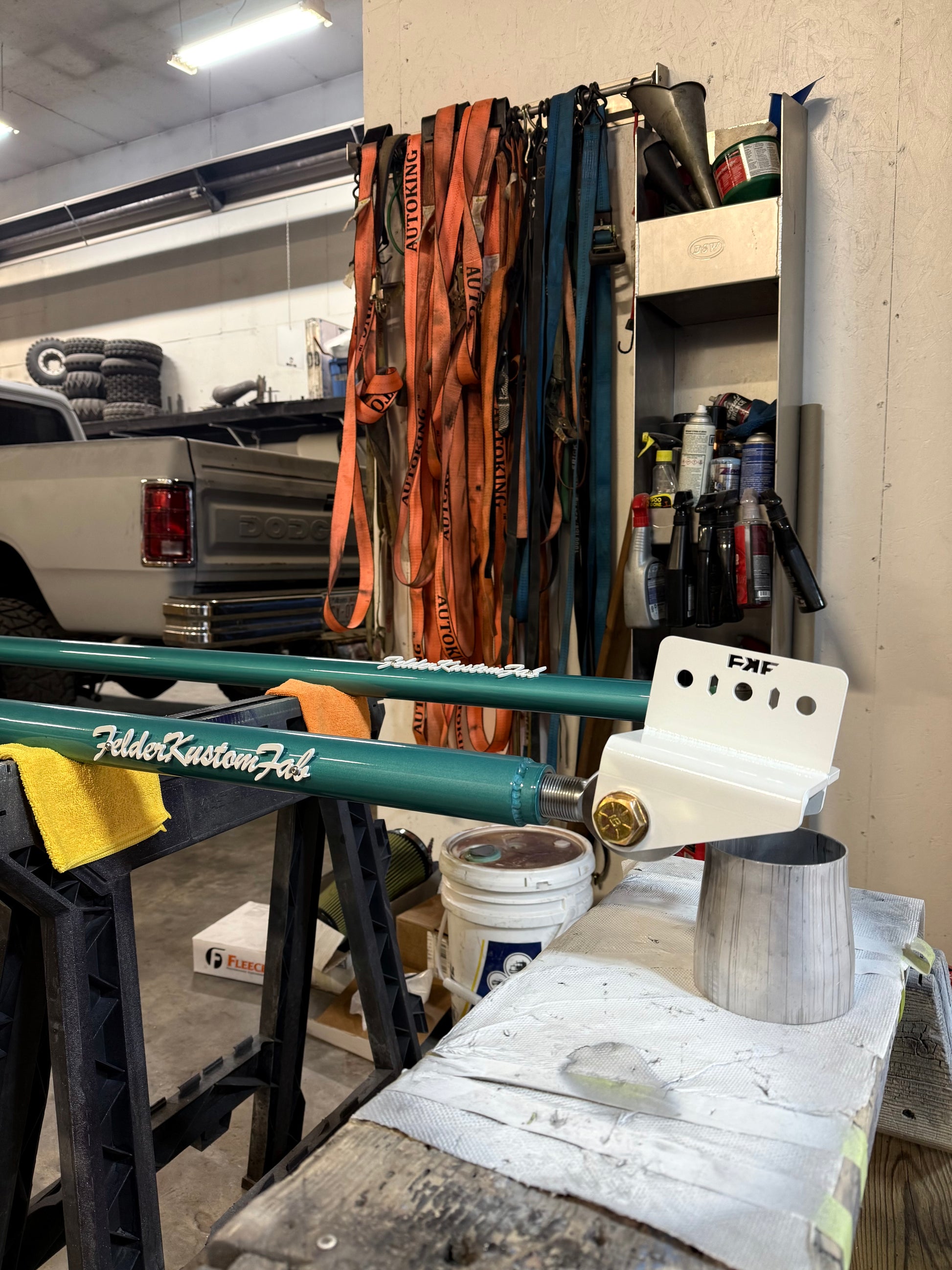

These bars use 2" .250" wall DOM steel tubing, 1/4" HRPO steel mounts and 1.25" (76,000LB) load rated heim joints. We are proud to say these bars use some of the highest strength components on the market. In other words, if you bend, crack or damage these bars or any fabricated component in this kit, we will replace them. NO QUESTIONS ASKED LIFETIME WARRANTY.

Included components-

2- 2" .250" wall DOM tube traction bars

2- 2" .250 wall DOM tube with HD poly Bushing and sleeve

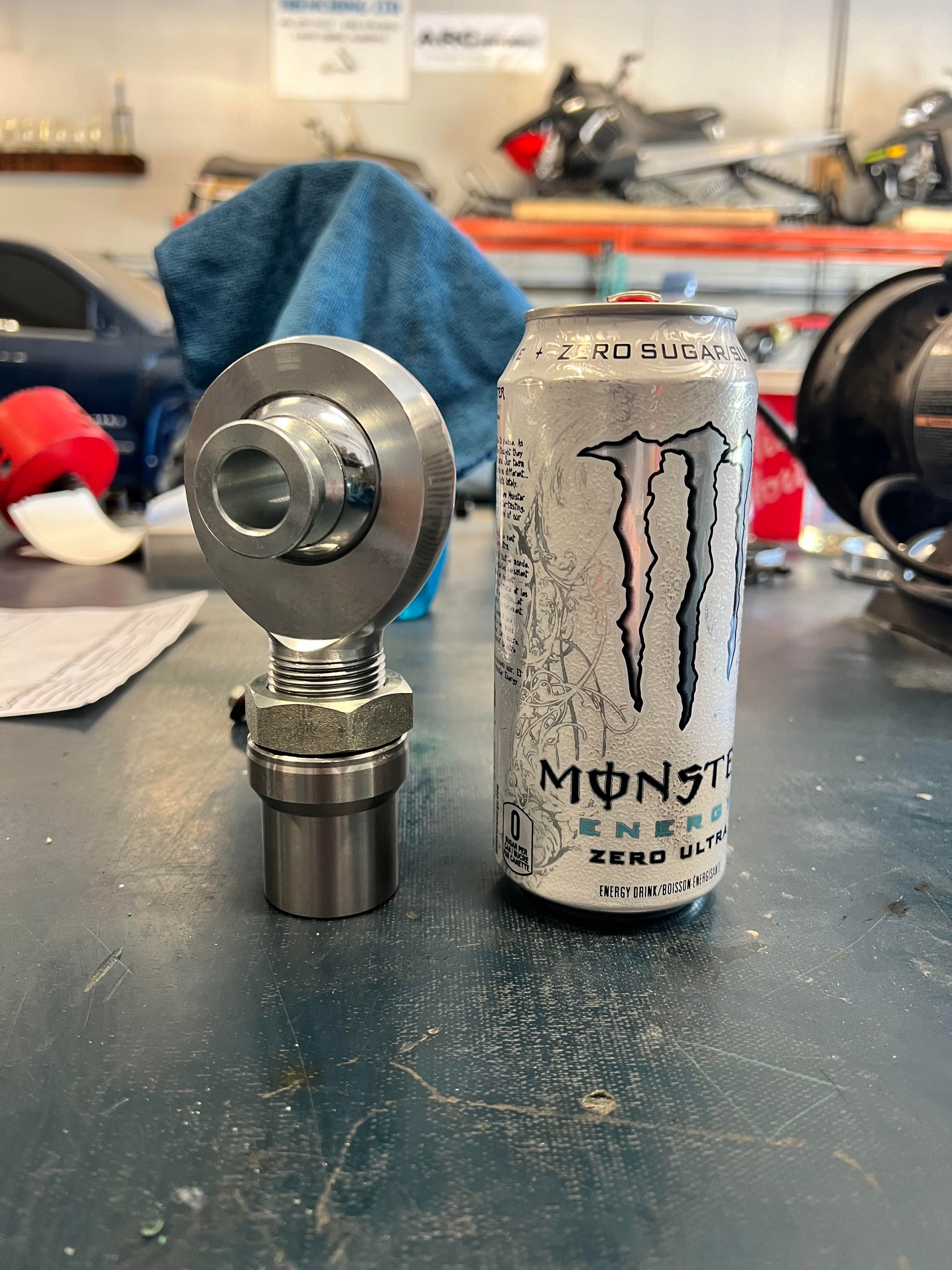

2- 1.25” 12tpi Thread Right Hand Heim Joint (76,000lbs load rating)

4- Heim Joints misalignment spacers

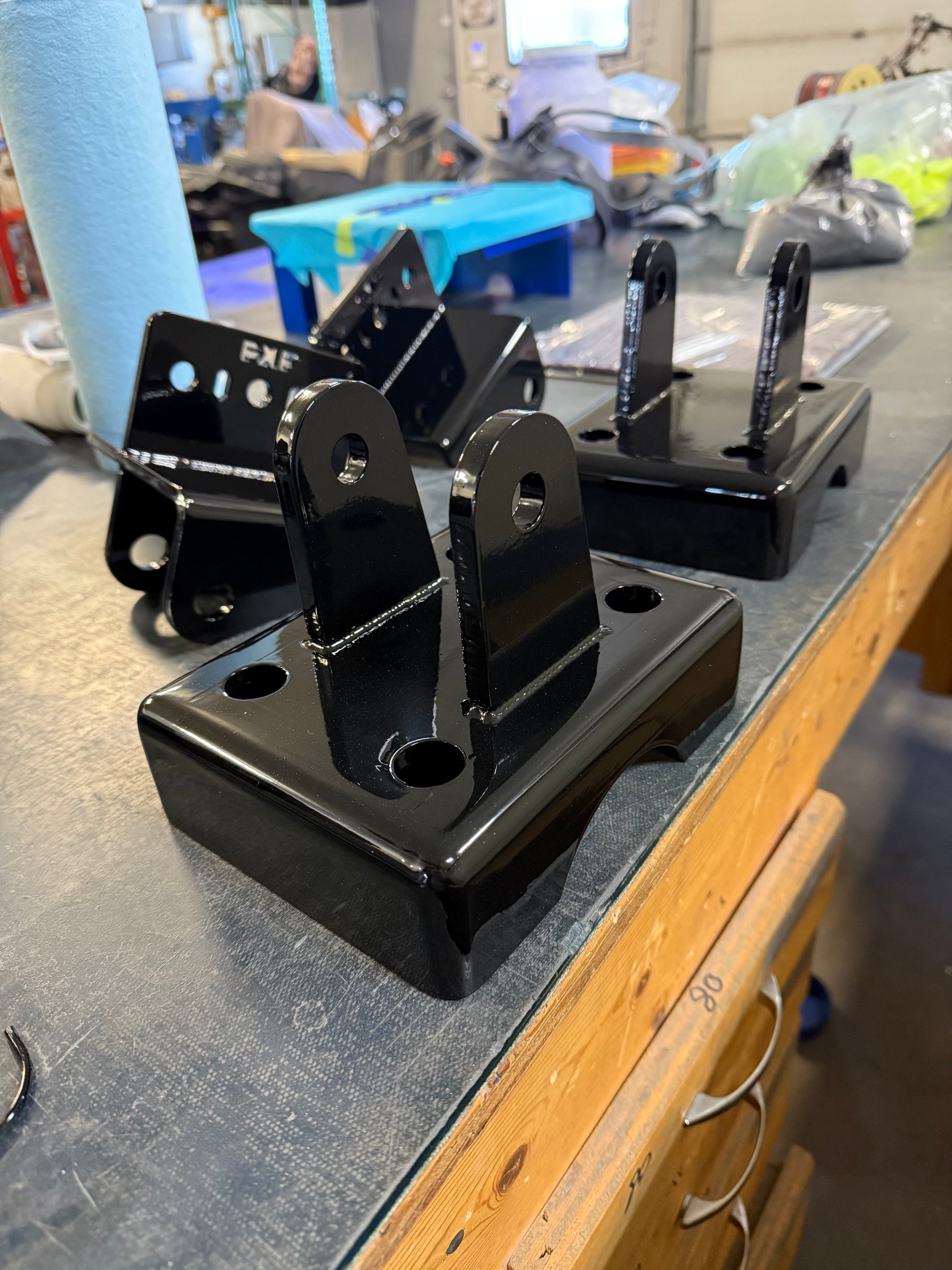

2- 1/4" Steel rear bolt on axle mounts

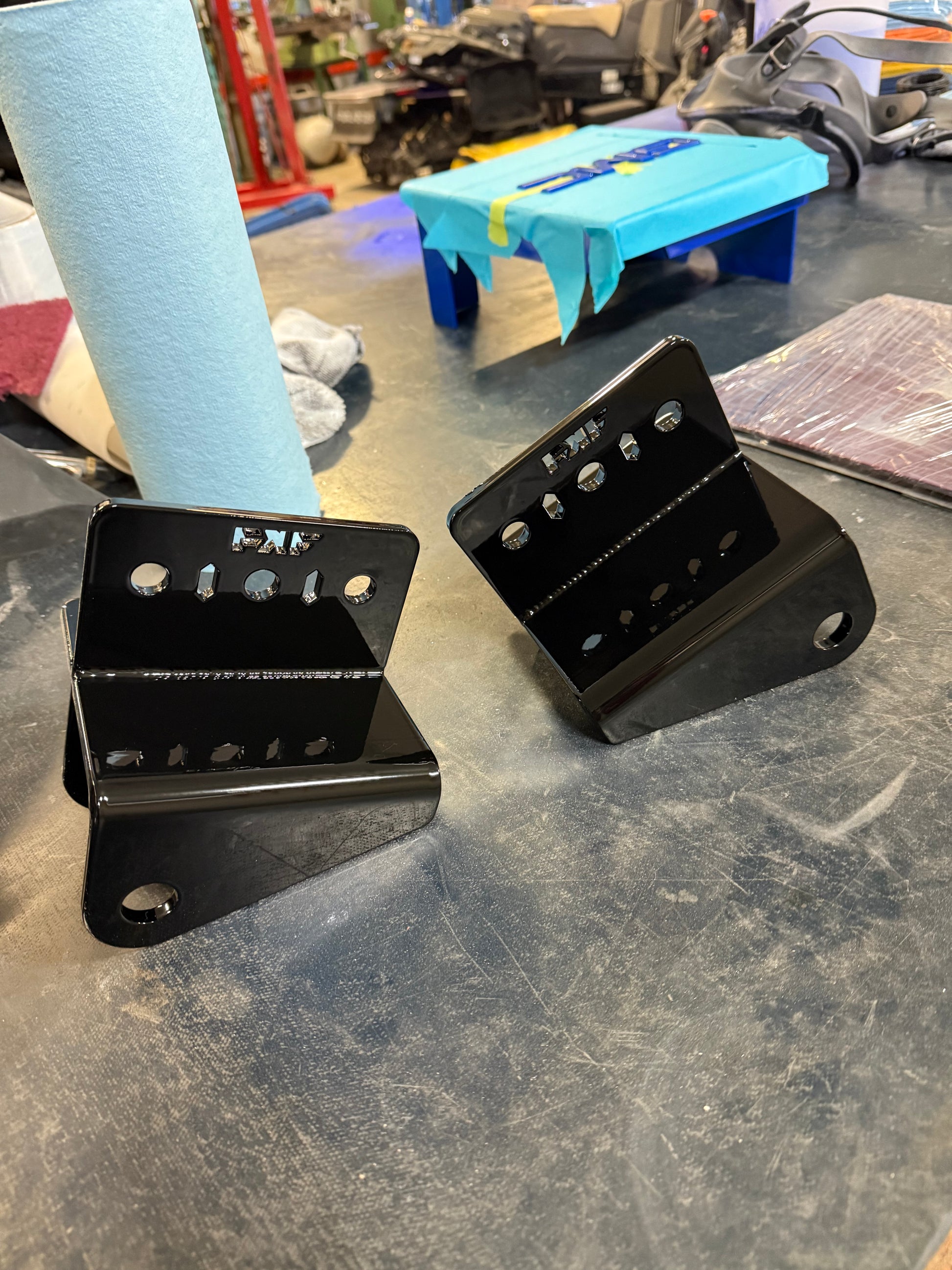

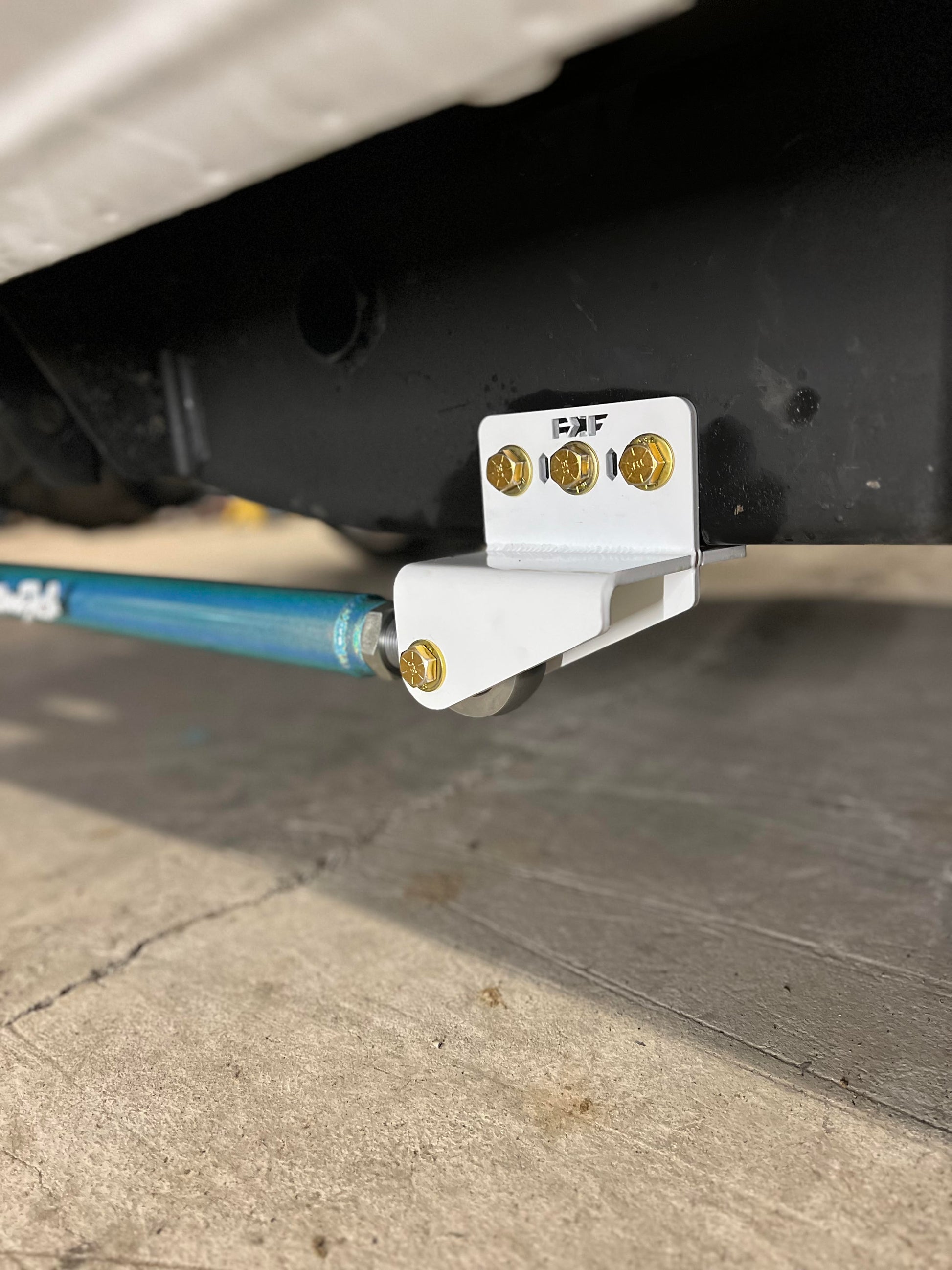

2- 1/4" steel front bolt on frame brackets

2- Grade 8 5/8"- 4" long bolts

2- Grade 8 3/4"- 4" long bolts

2- Grade 8 5/8 Nuts

2- Grade 8 3/4" Nuts

10- Grade 8 1/2" - 1-1/4" long bolts

10- Grade 8 1/2" nuts

20- 1/2" washers

4- 5/8" washers

4- 3/4" washers

2- 3/16" FelderKustomFab badges

4- Stainless button head badge mounting bolts

Available in 60", 70" and 75"

The FelderKustomFab badge will come raw, if you would like it done in a custom color, please state in the cart notes.

If custom powder coat color is desired for the bars or mounts- Select “Custom Color” and state color in dropdown menus. If Raw is selected, these fields can be left empty.

Colour Link- https://www.prismaticpowders.com/canada

These are built to order, please allow a 2-3 week lead time at the moment.

We recommend 60" for any Regular cab or Single Cab long bed trucks

70" for any Crew Cab short box or extended cab short box truck

75" for any Crew cab long bed or any CCSB or ECSB trucks lifted over 4.5"
