2011-2019 GM 2500/3500HD Traction Bars

FKF 60"-80" traction bars for 4" Axle Diameter Chevrolet/GMC HD trucks

These bars use 2" .250" wall DOM steel tubing, 1/4" HRPO steel mounts and 1.25" (76,000LB) load rated heim joints. We are proud to say these bars use some of the highest strength components on the market. In other words, if you bend, crack or damage these bars or any fabricated component in this kit, we will replace them. NO QUESTIONS ASKED LIFETIME WARRANTY.

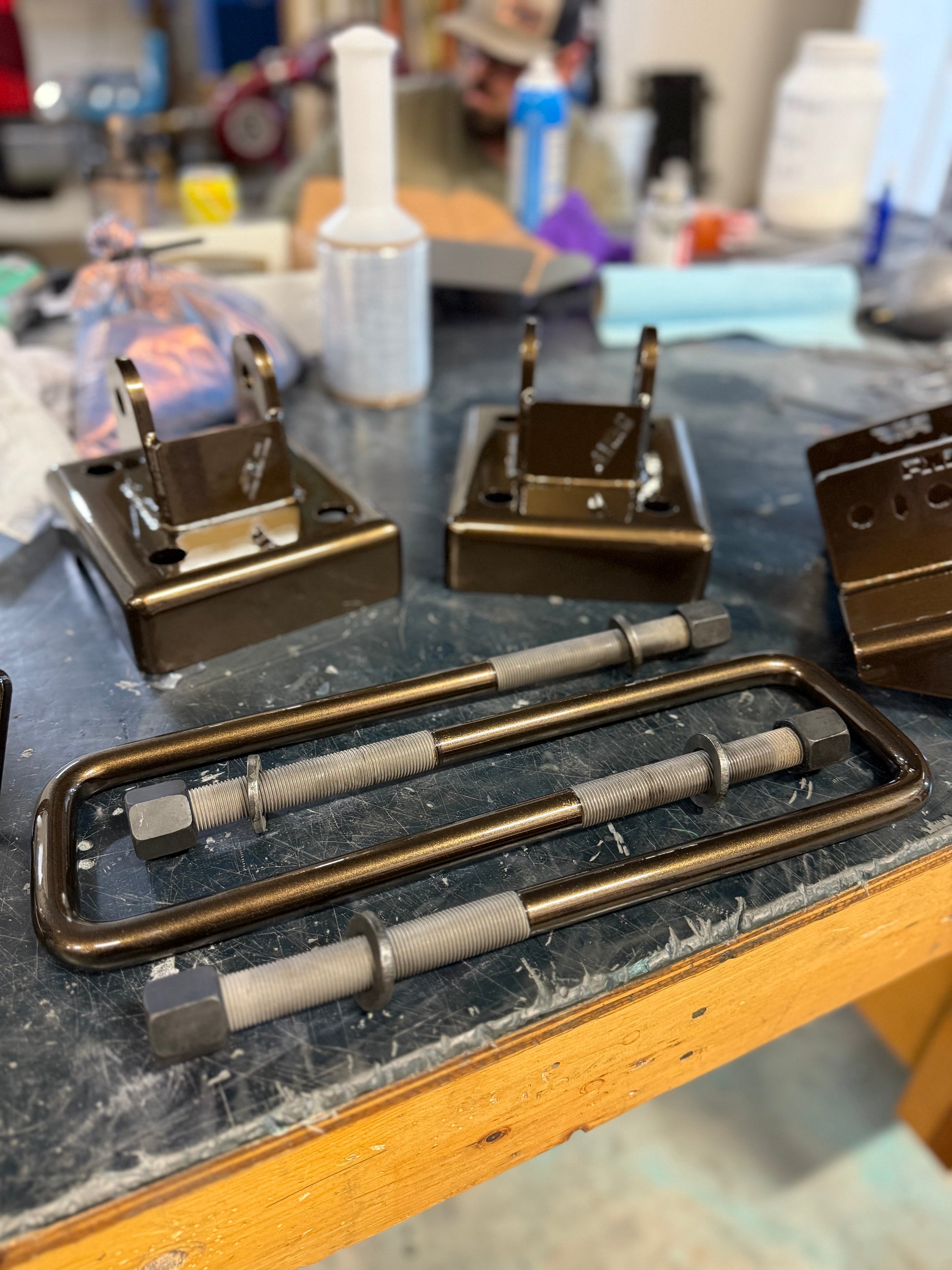

This Kit includes 4 brand new powder coated 3/4" U bolts!

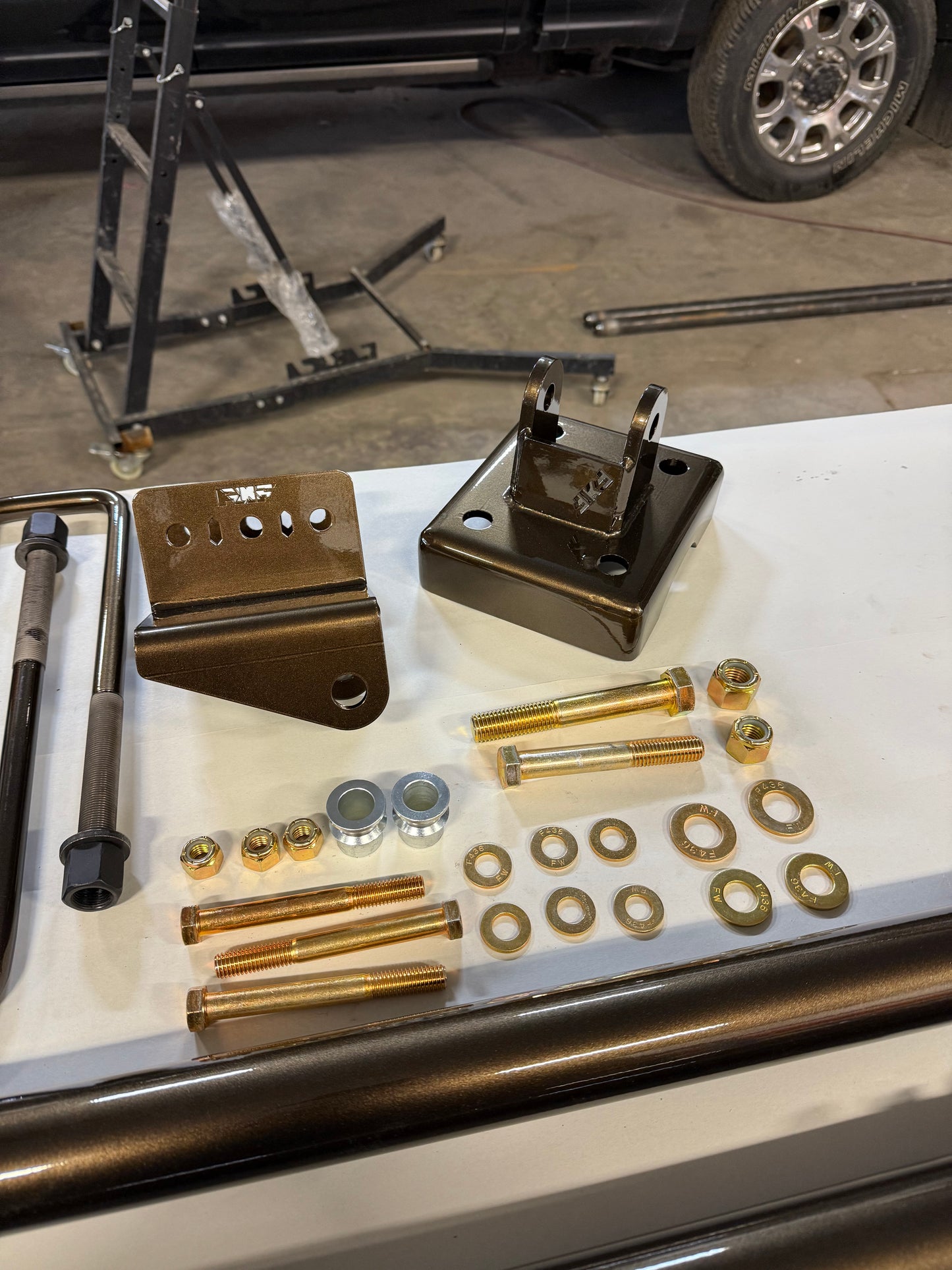

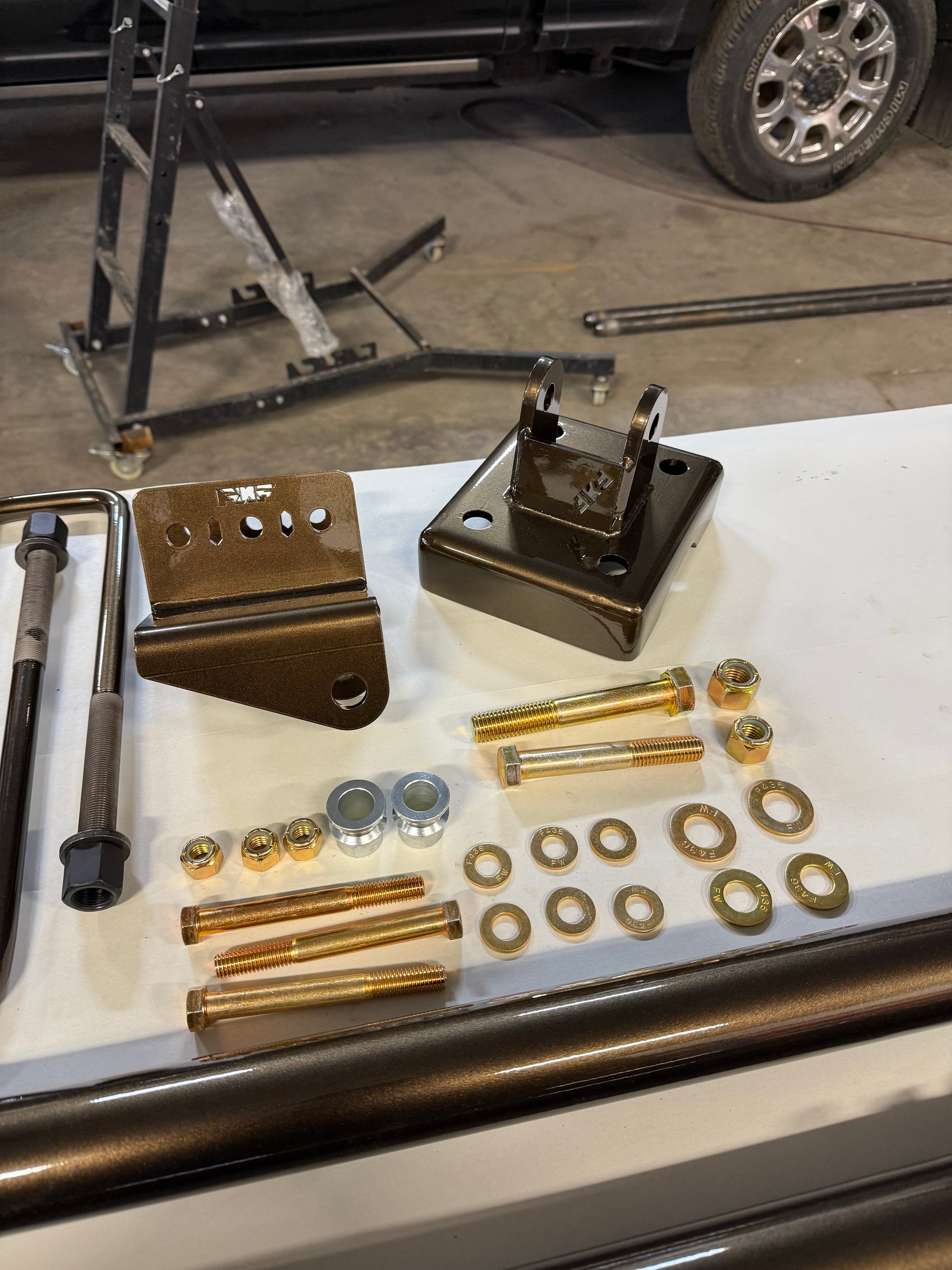

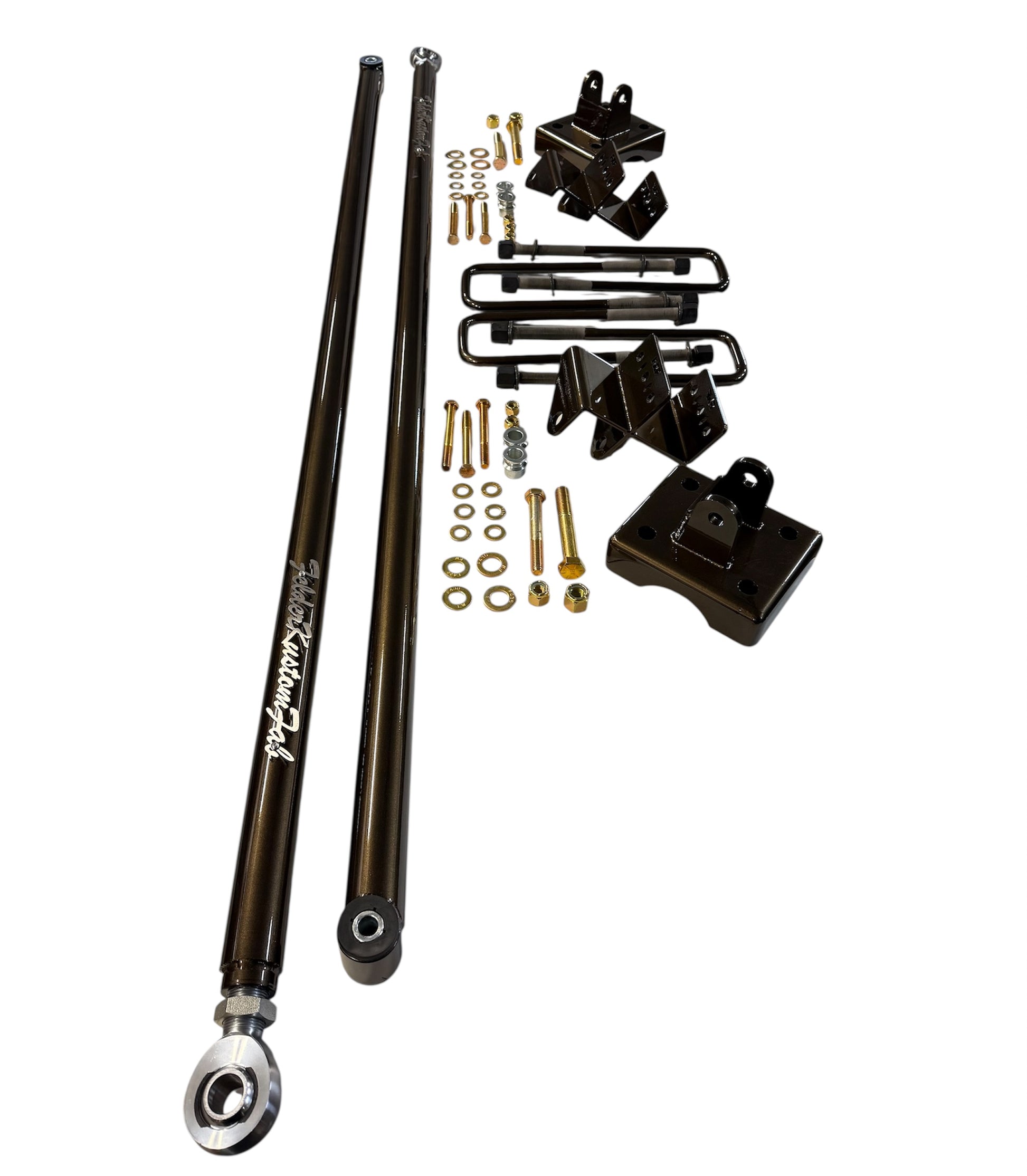

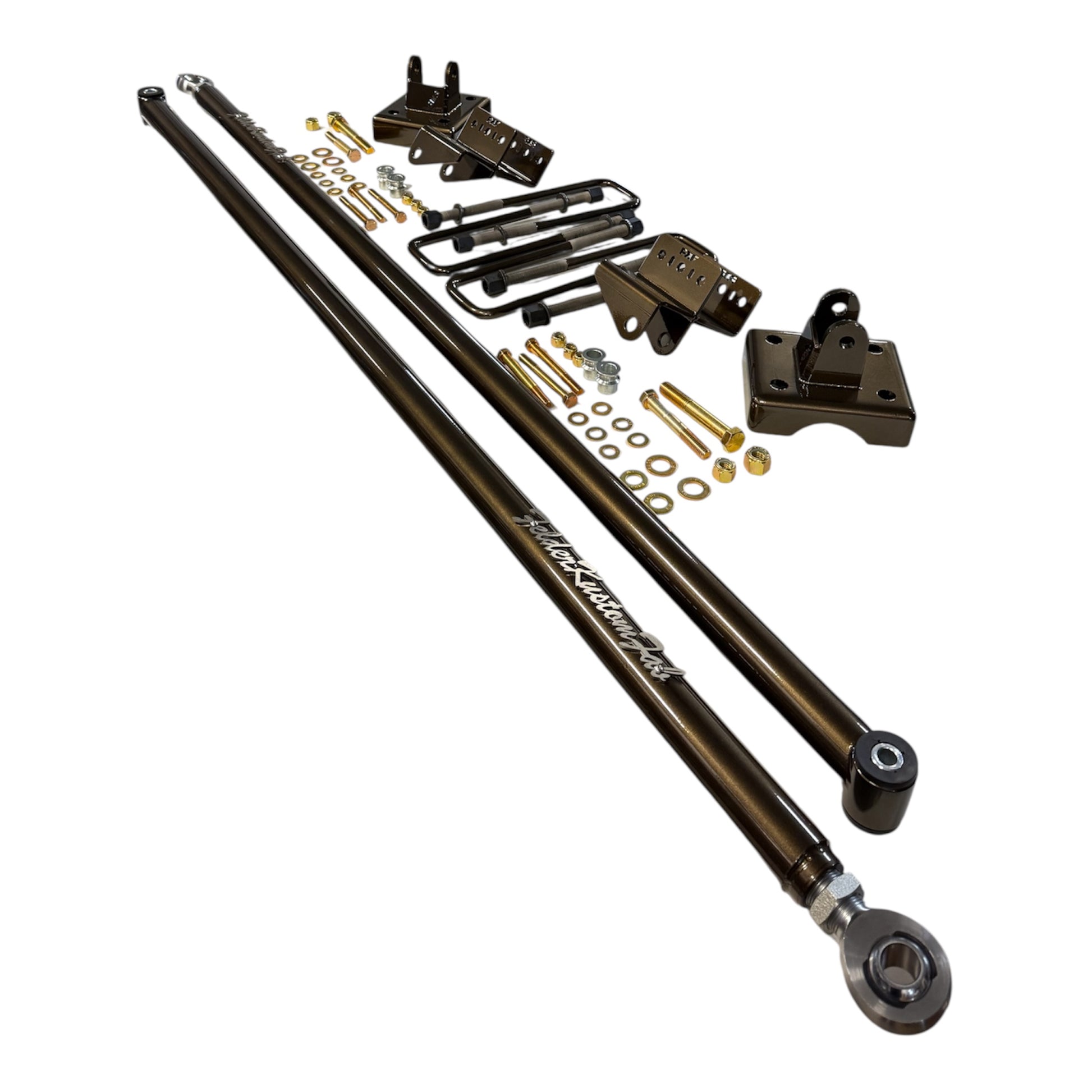

Included components-

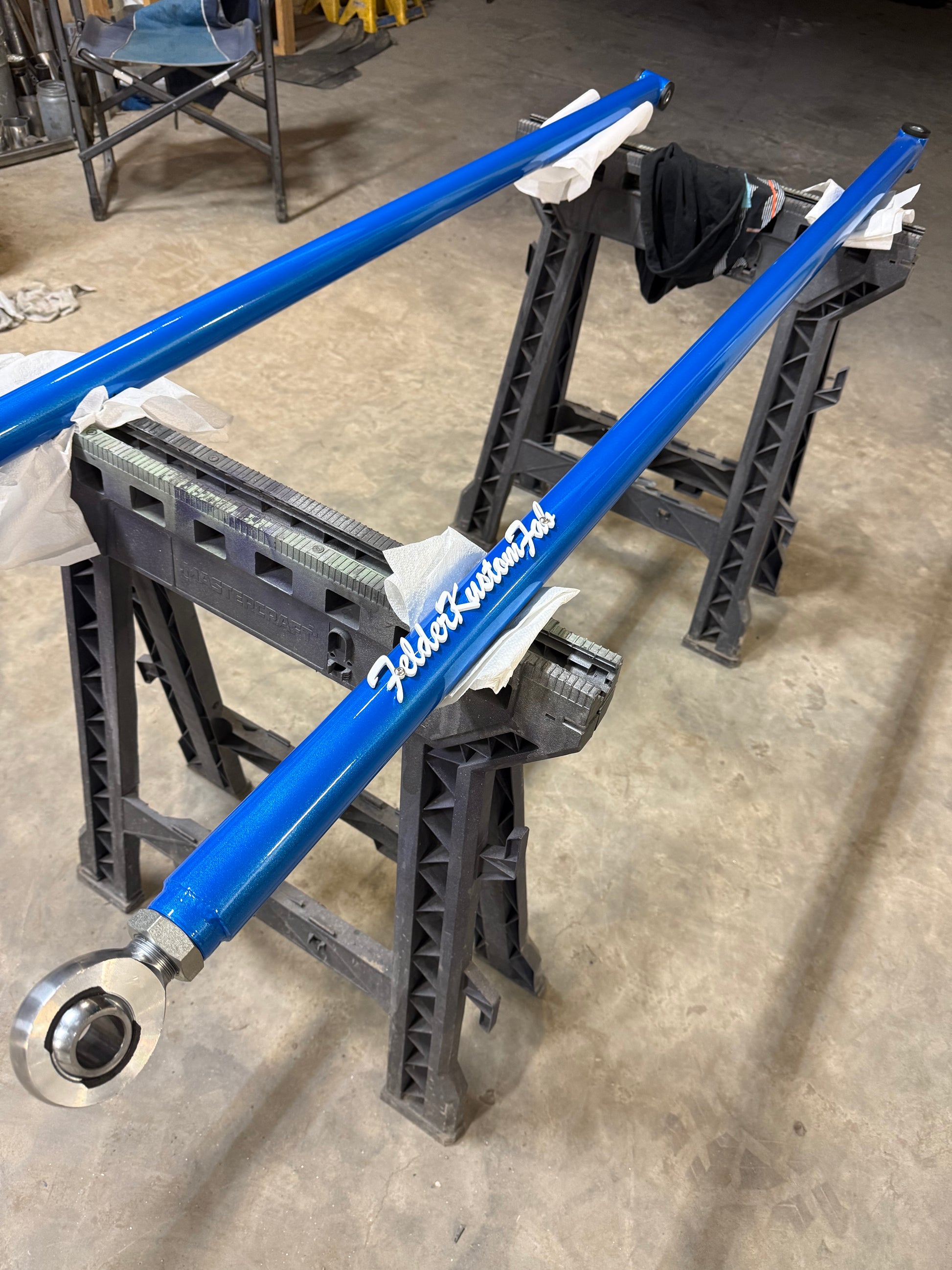

2- 2" .250" wall DOM tube traction bars

2- 2" .250 wall DOM tube with HD poly Bushing and sleeve

2- 1.25” 12tpi Thread Right Hand Heim Joint (76,000lbs load rating)

4- Heim Joints misalignment spacers

2- 1/4" Steel rear bolt on axle mounts

2- 1/4" steel front bolt on frame brackets

2- Grade 8 5/8"- 4" long bolts

2- Grade 8 3/4"- 4" long bolts

2- Grade 8 5/8 Nuts

2- Grade 8 3/4" Nuts

10- Grade 8 1/2" - 1-1/4" long bolts

10- Grade 8 1/2" nuts

20- 1/2" washers

4- 5/8" washers

4- 3/4" washers

2- 3/16" FelderKustomFab badges

4- Stainless button head badge mounting bolts

Available in any length from 60"-78"

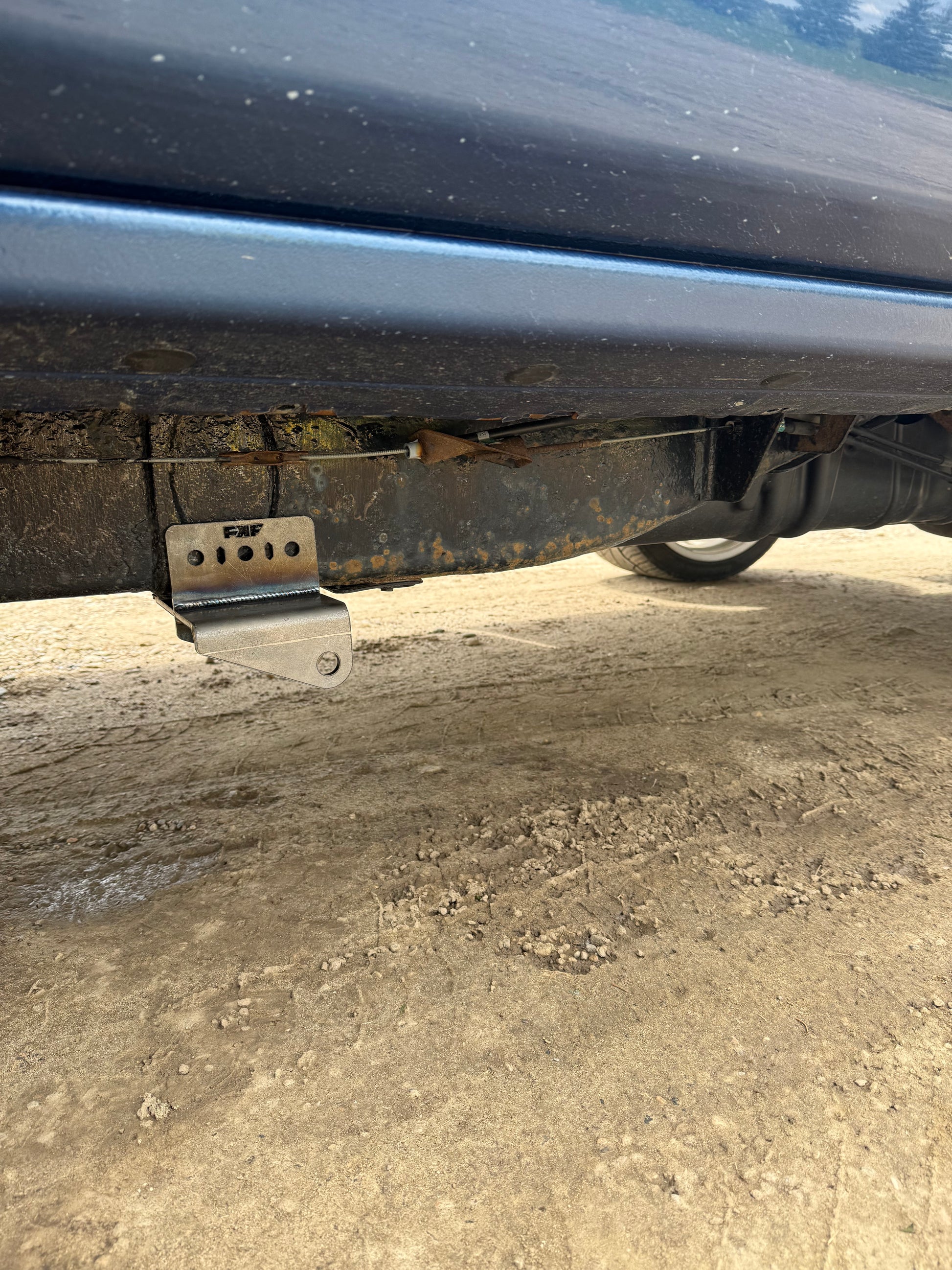

Important Note*- These front traction bar mounts use a cradle style mount that utilizes 3 "Through Frame" bolts that go through the thickest part of your  boxed frame. This removes having to drill big access holes in the backside of your frame to start a nut inside the frame rail. This creates a much stronger mount and mounting point, as well as an easier installation.

The only downside to this- these mounts need to land in a certain location on your frame for access to the bolts on the backside of the mount. The mounts will land on the thickest portion of your frame, but still allow access in front of the fuel tank to install the rear-most nut on the driver side.

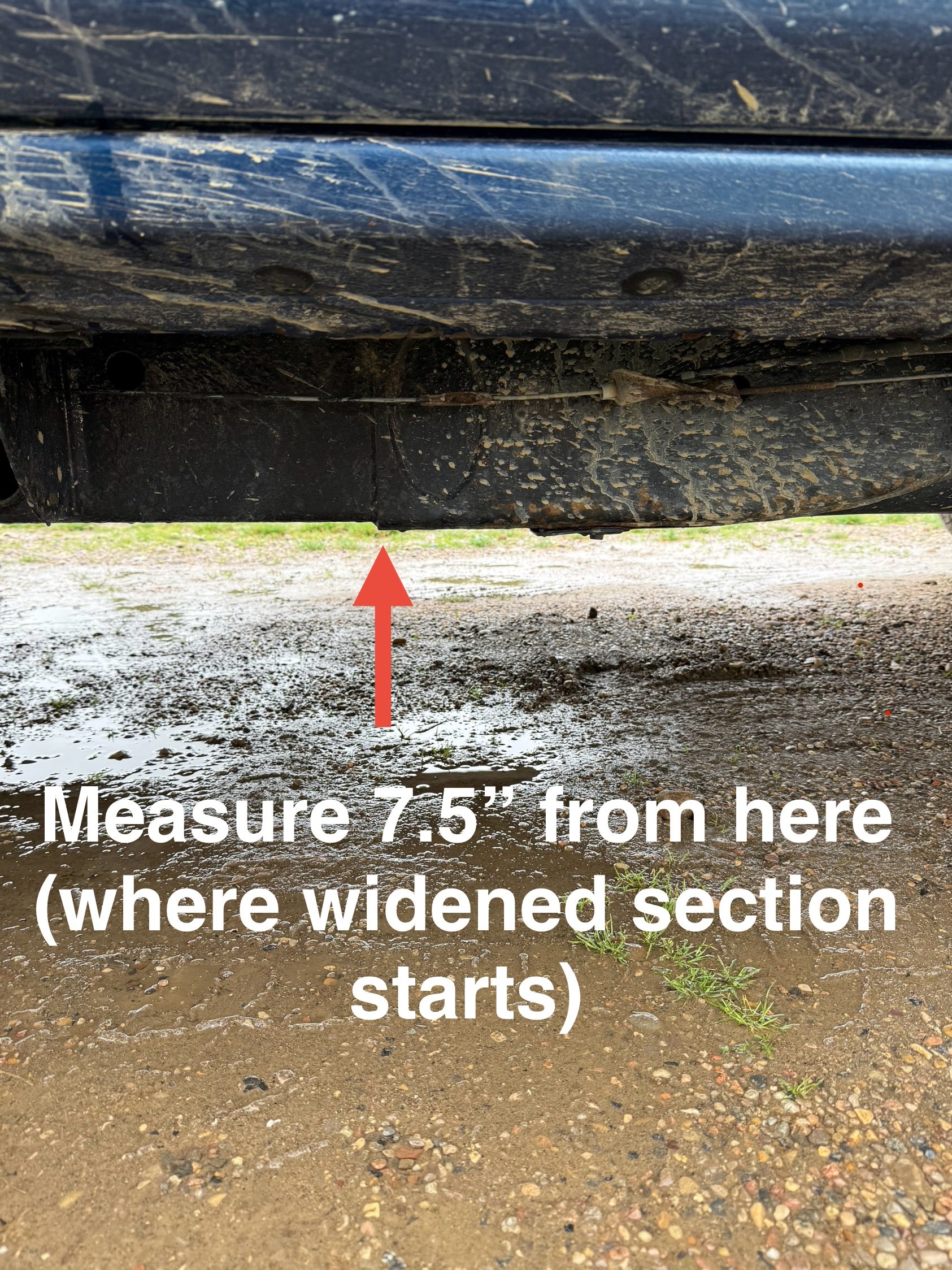

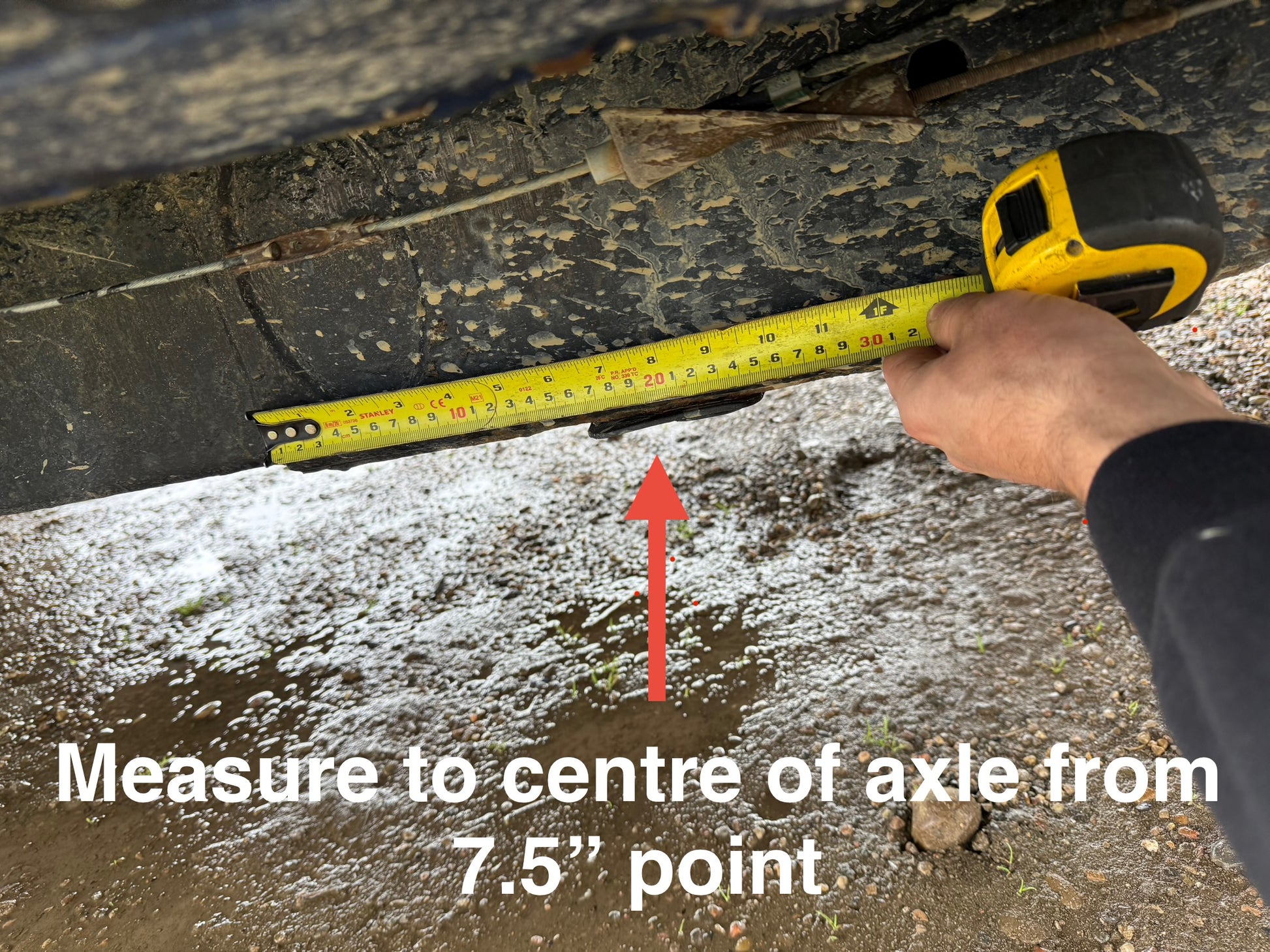

To measure for your specific traction bar length- Locate the widened section on your driver side frame rail. Measure 7.5" from this widened section and make a mark. Measure from this mark to the center of your axle. This will give you the correct traction bar length. We have attached photos to help with this process. (Close to stock height Short Box Crew Cabs will use 67.5" bars)

If you would prefer to have longer bars that mount forward from this widened section (75"+), please let us know and we will send shims for the front mounts

The FelderKustomFab badge will come raw brushed stainless steel, if you would like it done in a custom color, please state in the cart notes.

If custom powder coat color is desired for the bars or mounts- Select “Custom Color” and state color in dropdown menus. If Raw is selected, these fields can be left empty.

Colour Link- https://www.prismaticpowders.com/canada

These are built to order, please allow a 2-3 week lead time at the moment.
