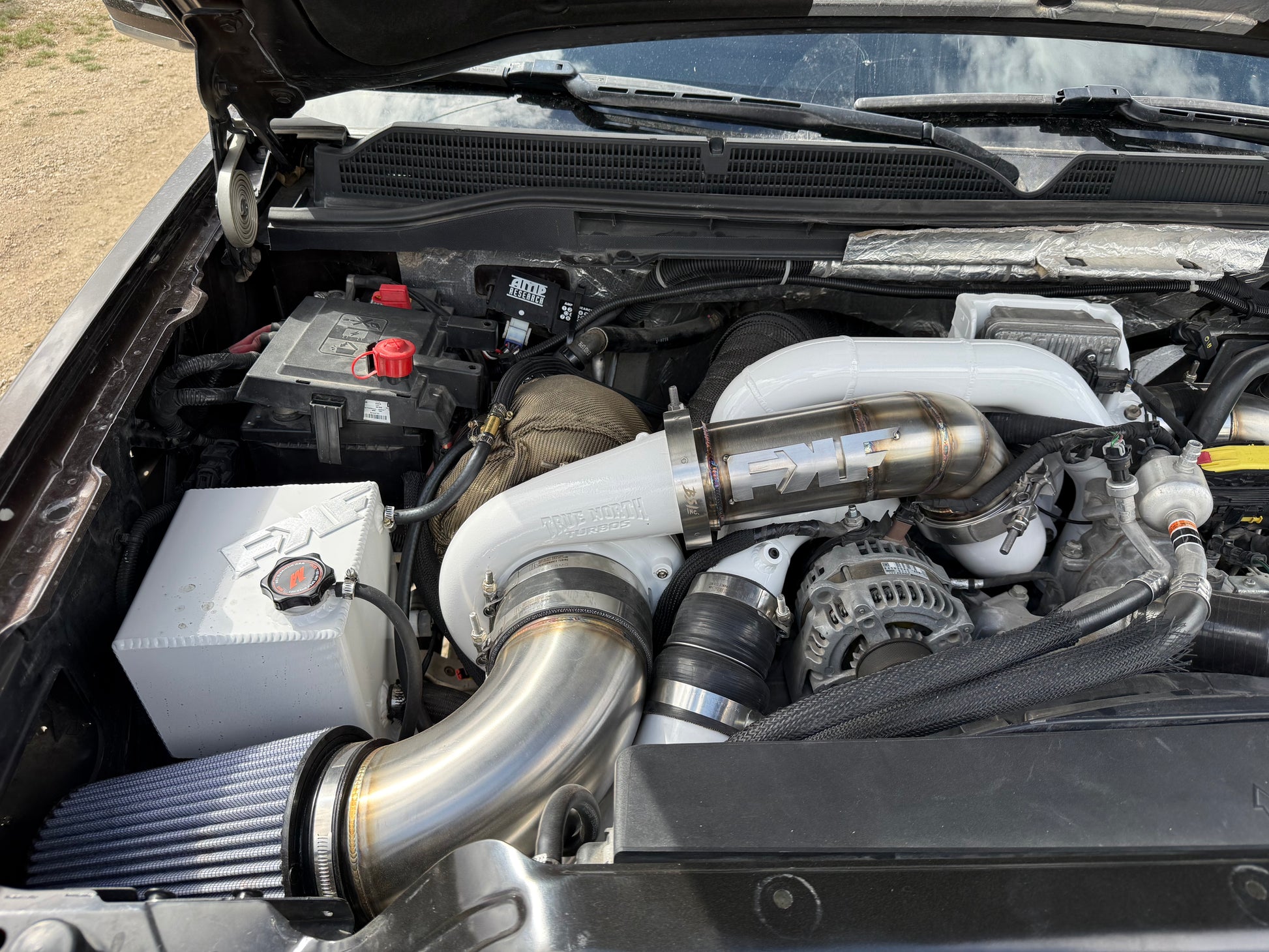

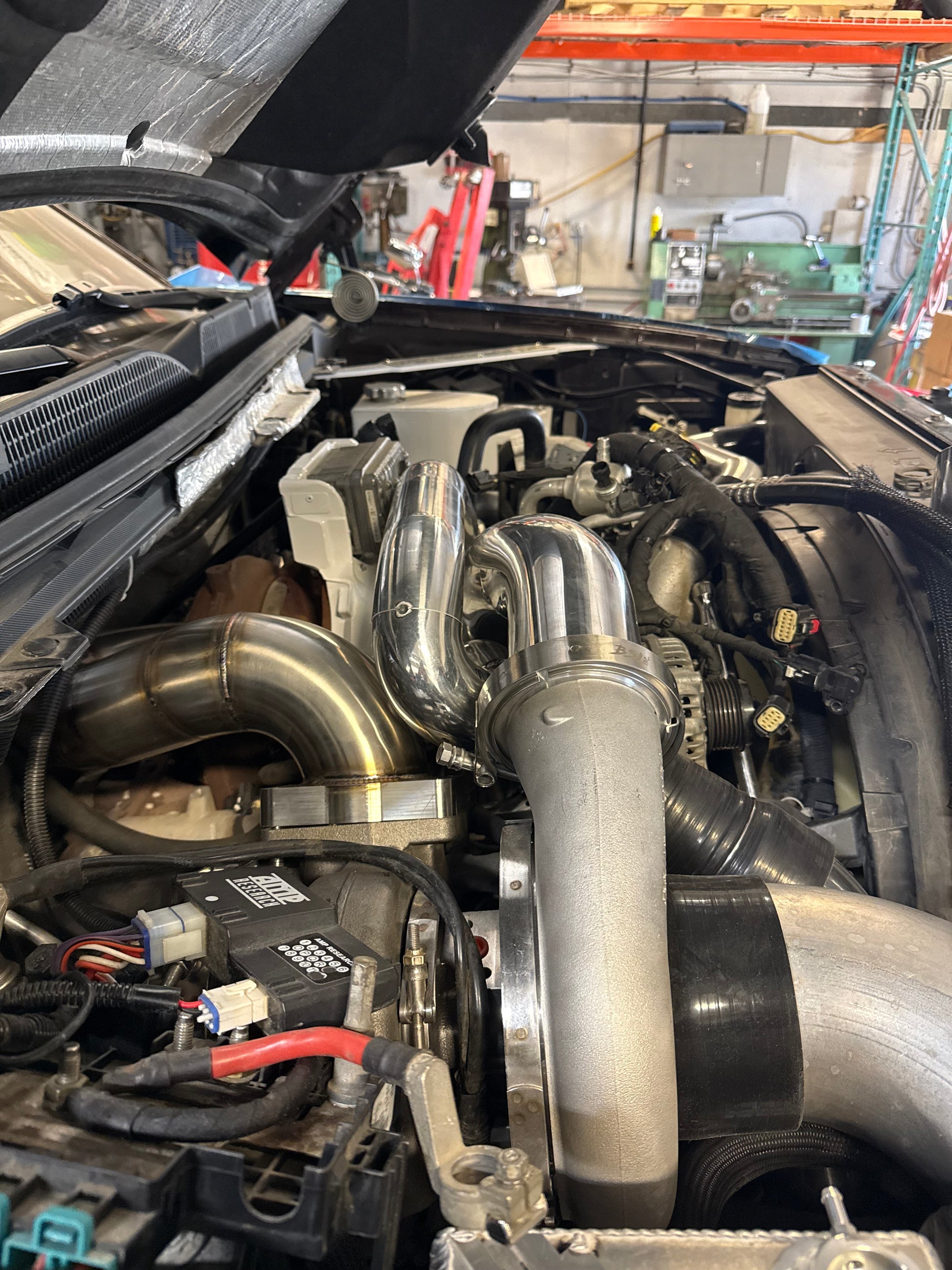

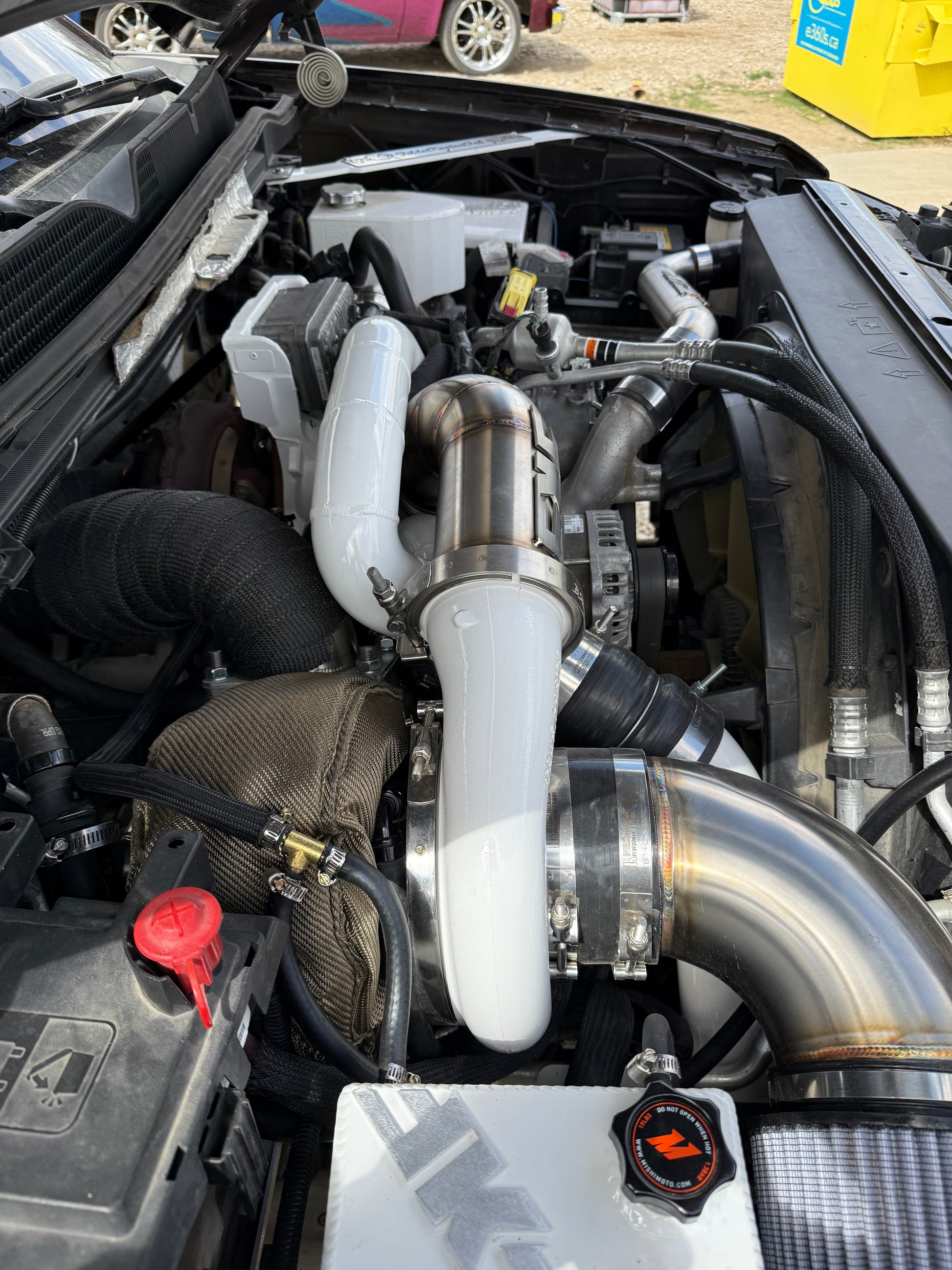

2017-2019 L5P Duramax S400/stock Compound Turbo Kit

FKF 2017 to 2019 L5P 400 overstock compound turbo kit

Current lead time- 6-8 weeks. Lead time will decrease as we build stock of this turbo kit

Features-

5” mandrel Bent Intake

-integrated billet MAF bung with stainless hardware

-high-quality dry filter, boots and clamps included

-Available in 304 stainless steel or 6061 aluminum (if stainless is selected it will be left raw brushed finish)

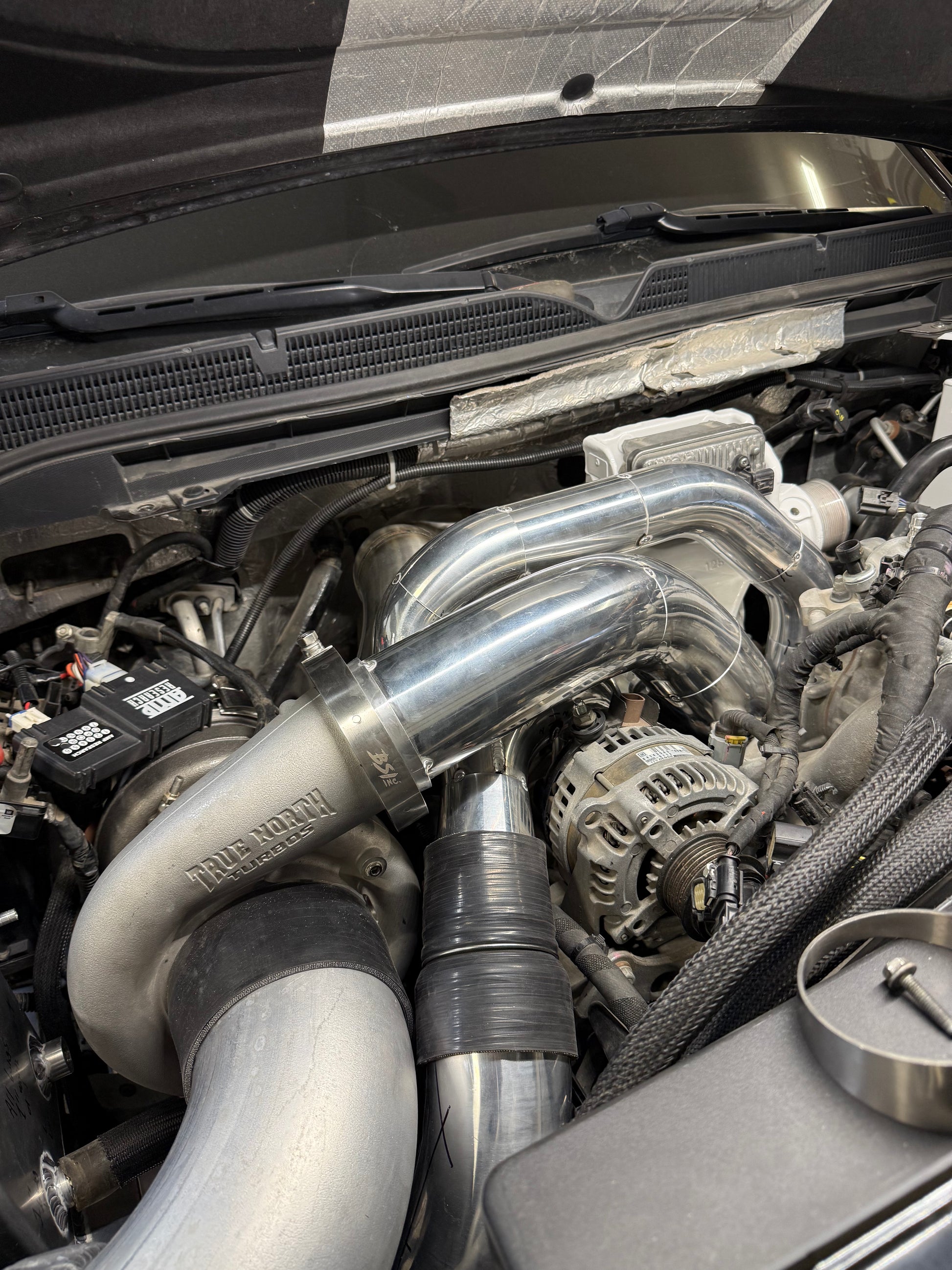

3.5” mandrel bent 6061 aluminum cold side crossover

-O ringed on both sides and boasting a thick billet mouthpiece flange

3.5” mandrel bent 6061 Aluminum Cold Side pipe

-includes O ringed Billet Intercooler adapter (will work on most aftermarket intercoolers)

-Integrated IAT Bung

-Boots and clamps included

High flow 6061 aluminum Y bridge

-True “Y” design rather then a pipe merge

-3” Billet Port Matched Flanges

-Integrated MAP bung and additional 1/8” NPT ports

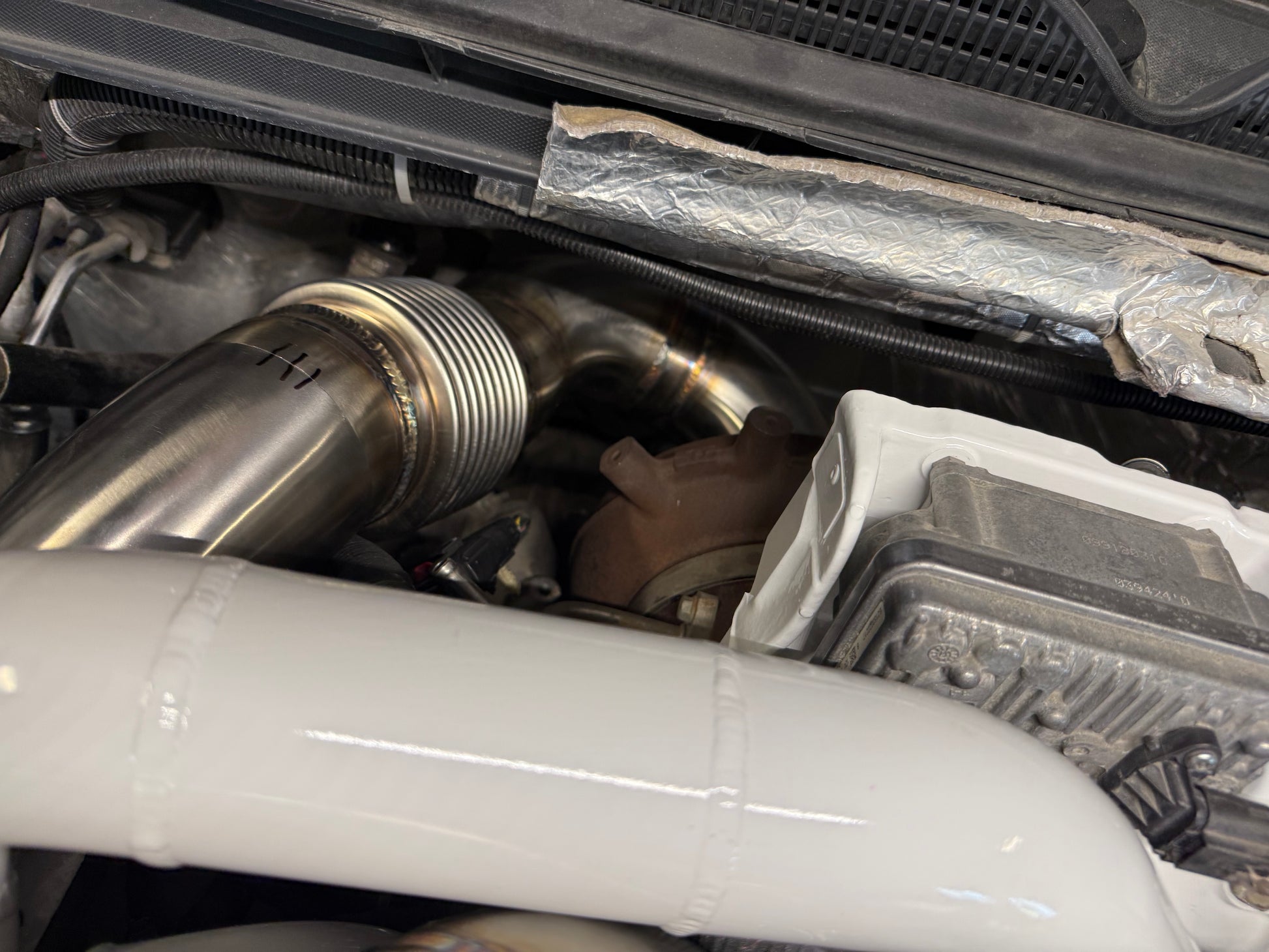

3.5” Mandrel Bent 304 Stainless Exhaust Crossover

-Fully Stainless Construction including Valley turbo flange

-Thick Billet Port Matched T6 Flange

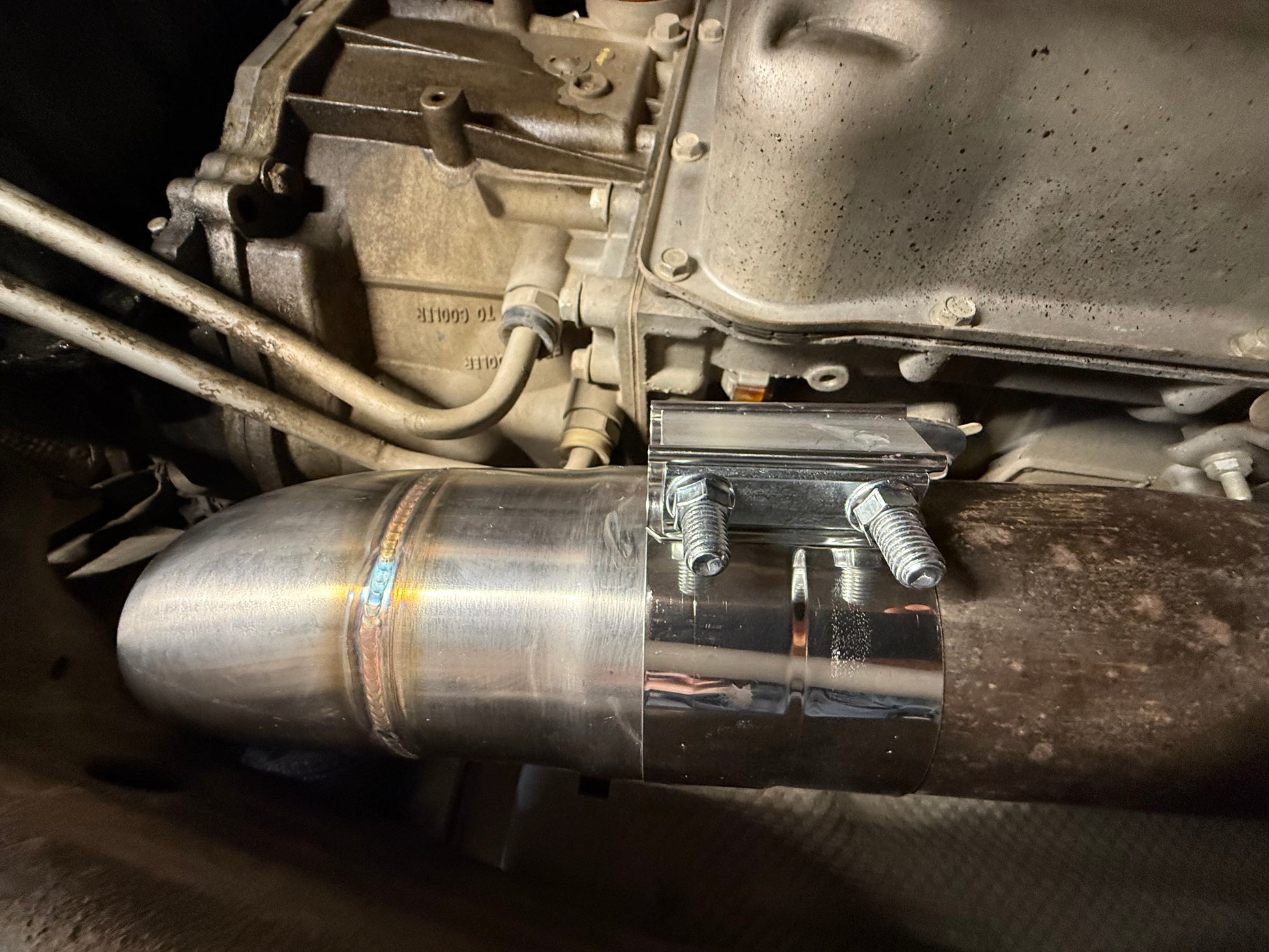

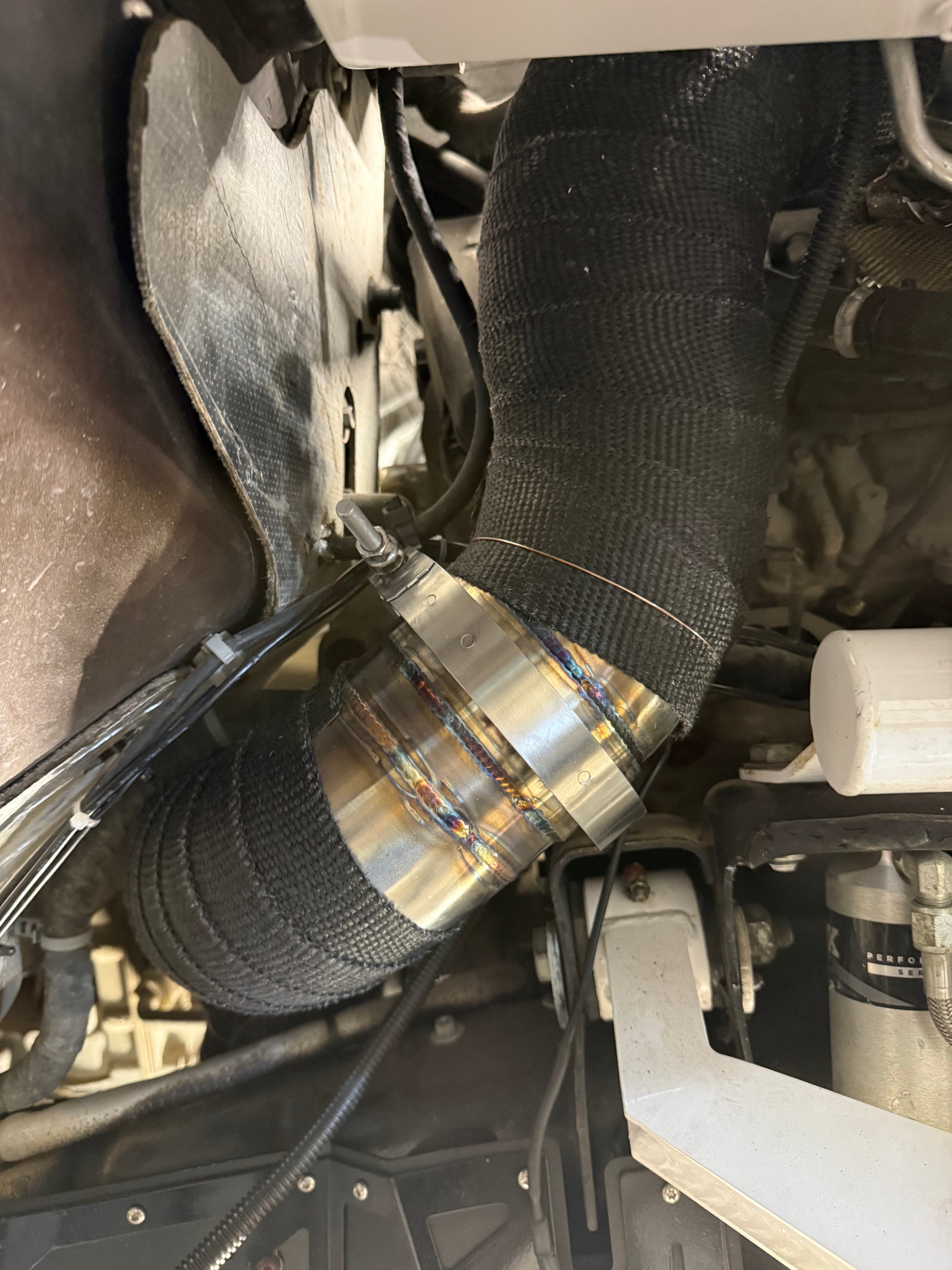

4” Mandrel Bent 304 Stainless Downpipe

-Two piece V band design for ease of install

-4” Slip joint to eliminate any 3.5” restriction

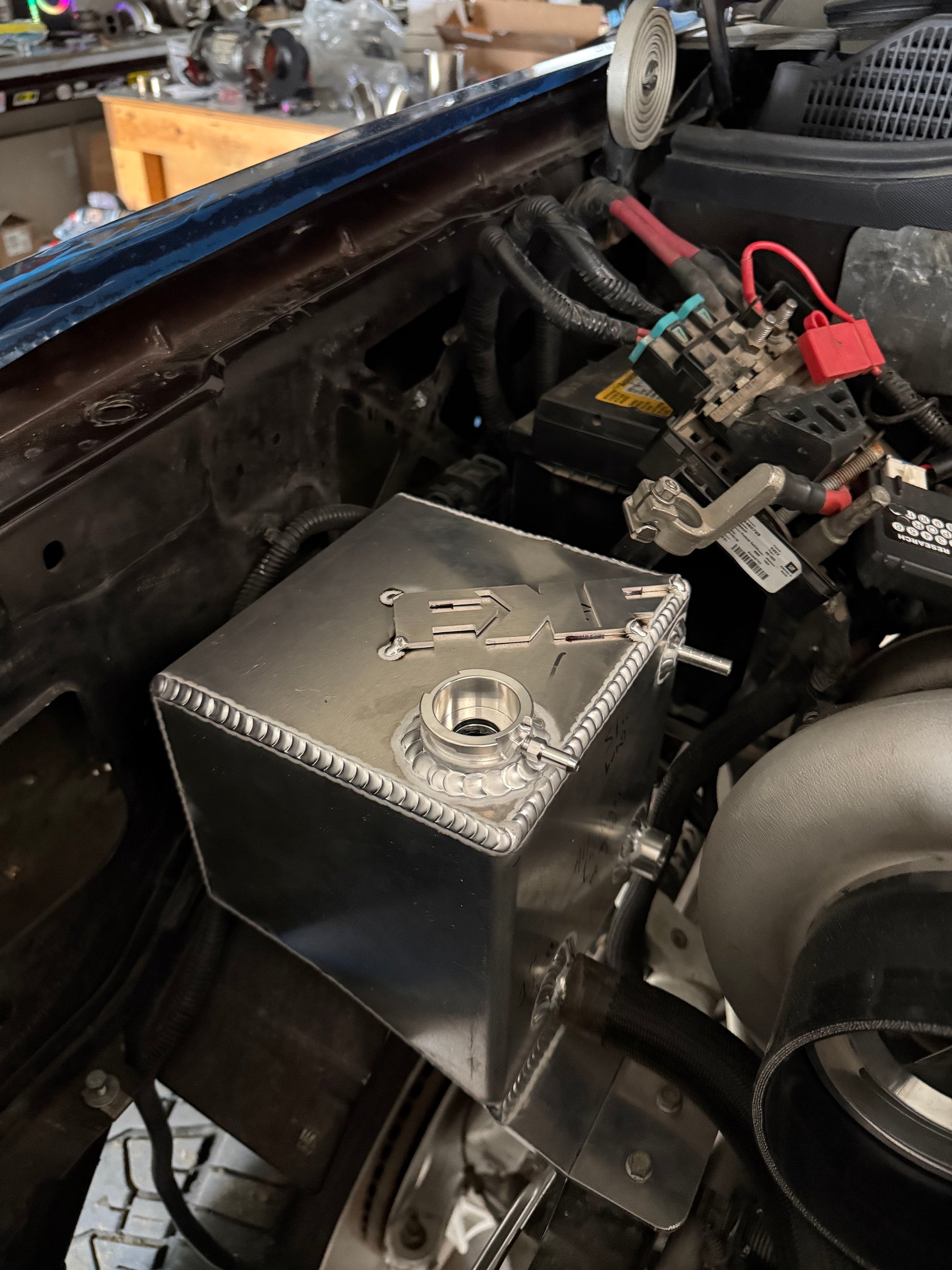

Fabricated Coolant tank

-TIG welded 3/16” aluminum construction

-Built in serviceable low level sensor

-1.3 bar cap

Fabricated battery tray

-Tig welded 1/8” steel construction

-Intergrated Battery hold down with stainless hardwRe

-Allows for zero wiring changes

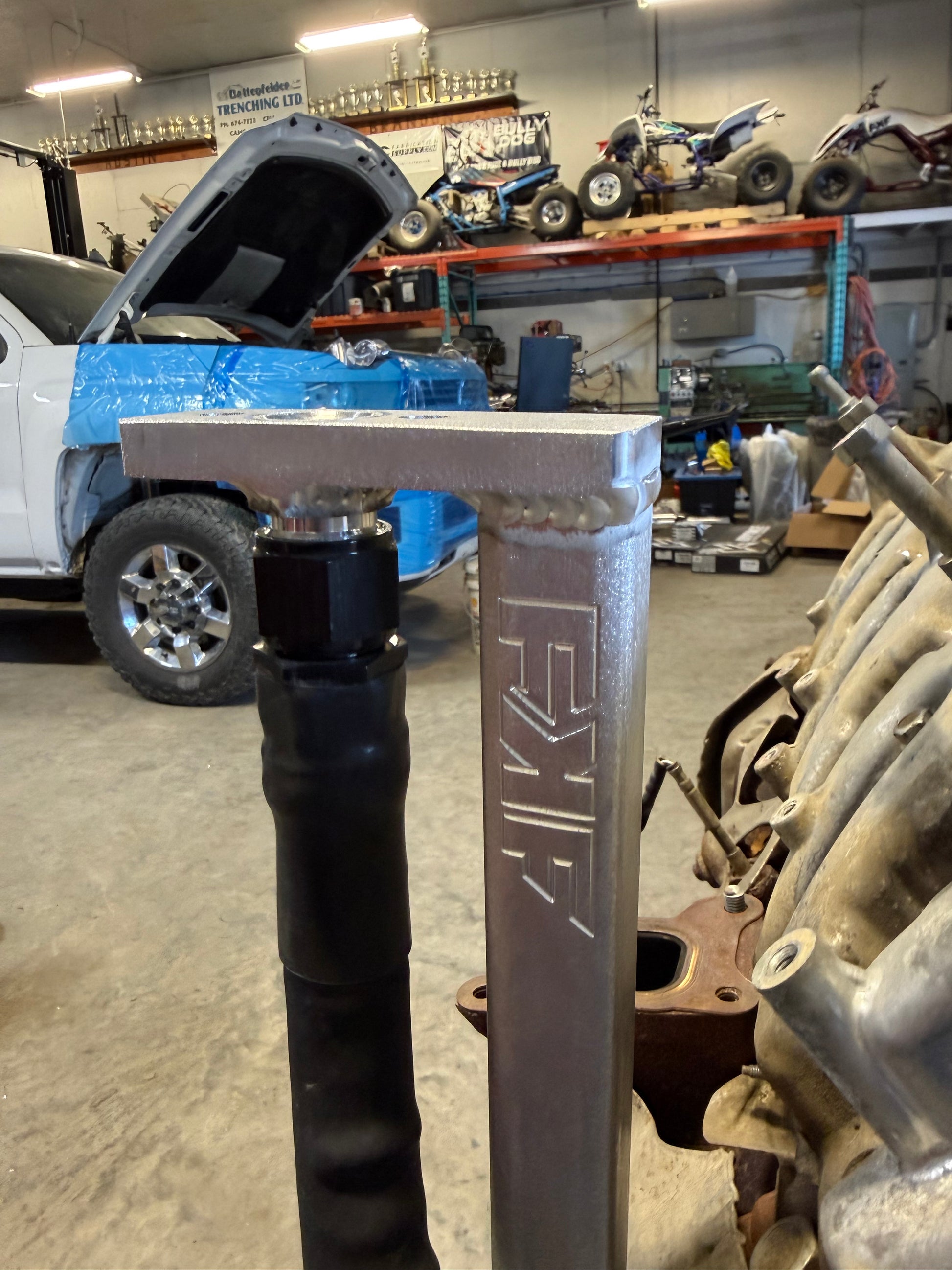

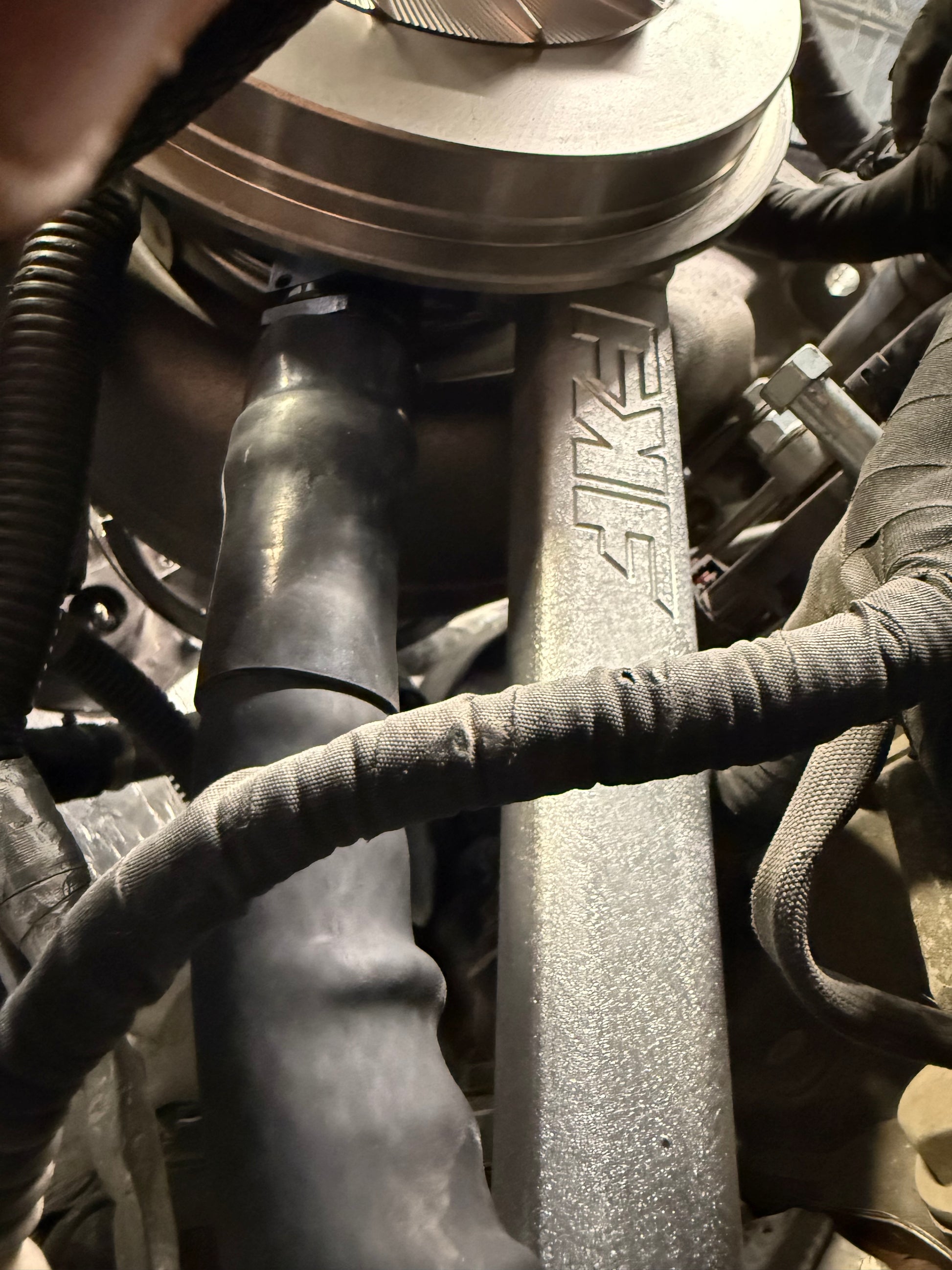

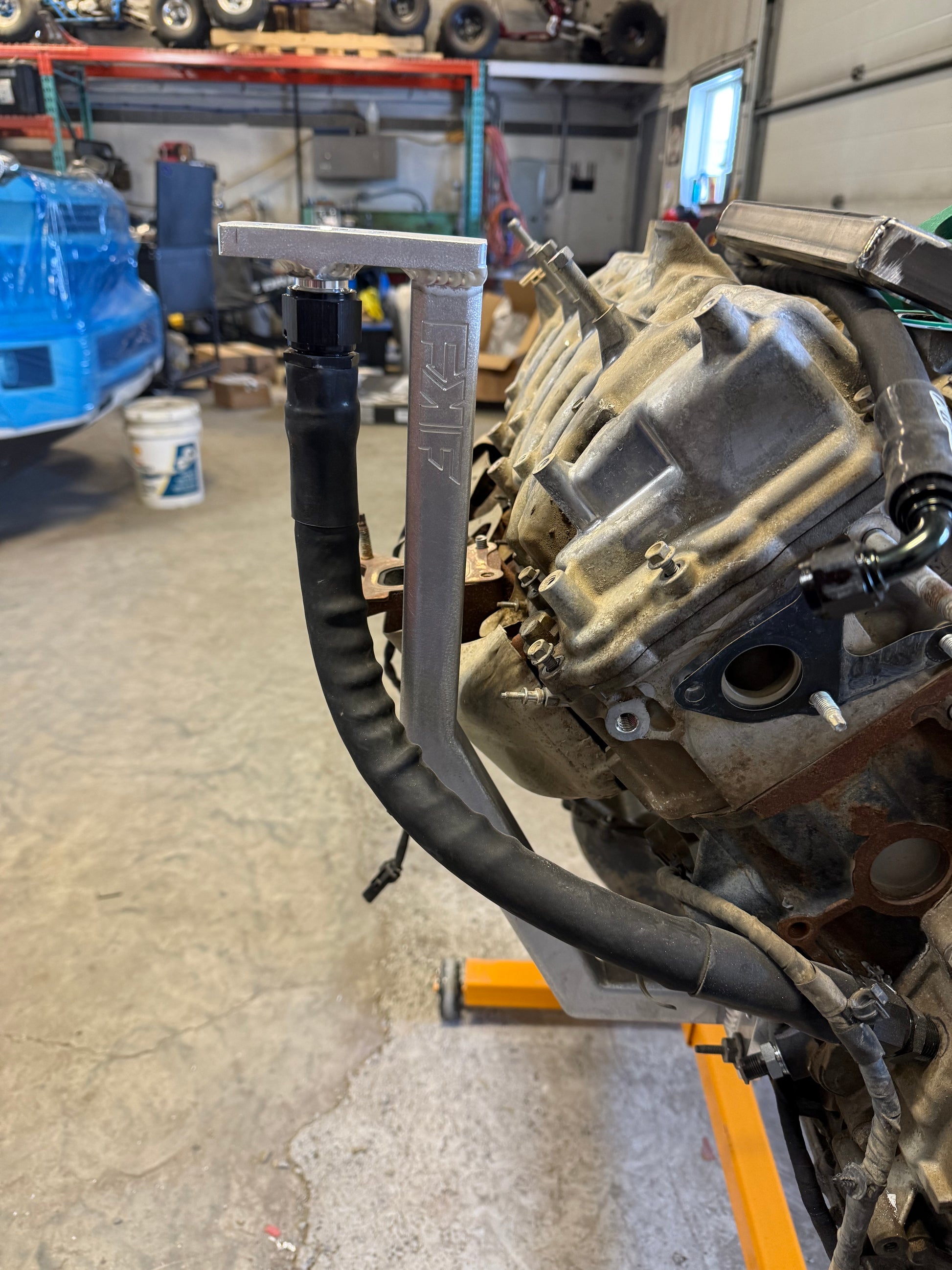

Billet Atmo Turbo Pedestal

-1” Solid Aluminum Billet Body

-1/4” mounting flanges with milled O ringed flange

-Integrated 12an drain bung

Oil Lines

- 6an feed and 12an drain

-Both lines are backed by a manufacturer lifetime warranty

-Stainless Braided with the addition of heat sleeving

Other Components

-12an Front Cover Fitting

-Both turbo feed block and turbo fittings

-O rings for mouthpiece flange, Intercooler adapter, and oil drain

-T6 dual layer turbo gasket

-BSI Turbo Blanket

-100’ of TI heat wrap and 8 Stainless Ties

-1” CCV vent line

-5/8” Heater hose and brass T

-Drill Bit and Tap for Oil drain line

-All stainless hardware

-All high quality 5 ply boots and clamps

Turbos

S480 96x88 1.32AR- Best suited for Stock or Mild Fuel trucks. Pairs well with the stock valley charger or a 64mm upgrade. Makes for a fantastic towing/daily driving setup

S489 96x88 1.32AR- Best suited for bigger fuel setups (12mm/100s etc) and Larger 67mm Valley Turbos. Competition setup but still drives very well on the street

If custom powder coat colour is desired- Select “Custom Colour” and state colour in the cart notes

Color Link- https://www.prismaticpowders.com/

Kits are Currently 6-8 week lead time. This will decrease to 1-2 weeks over the course of the year
